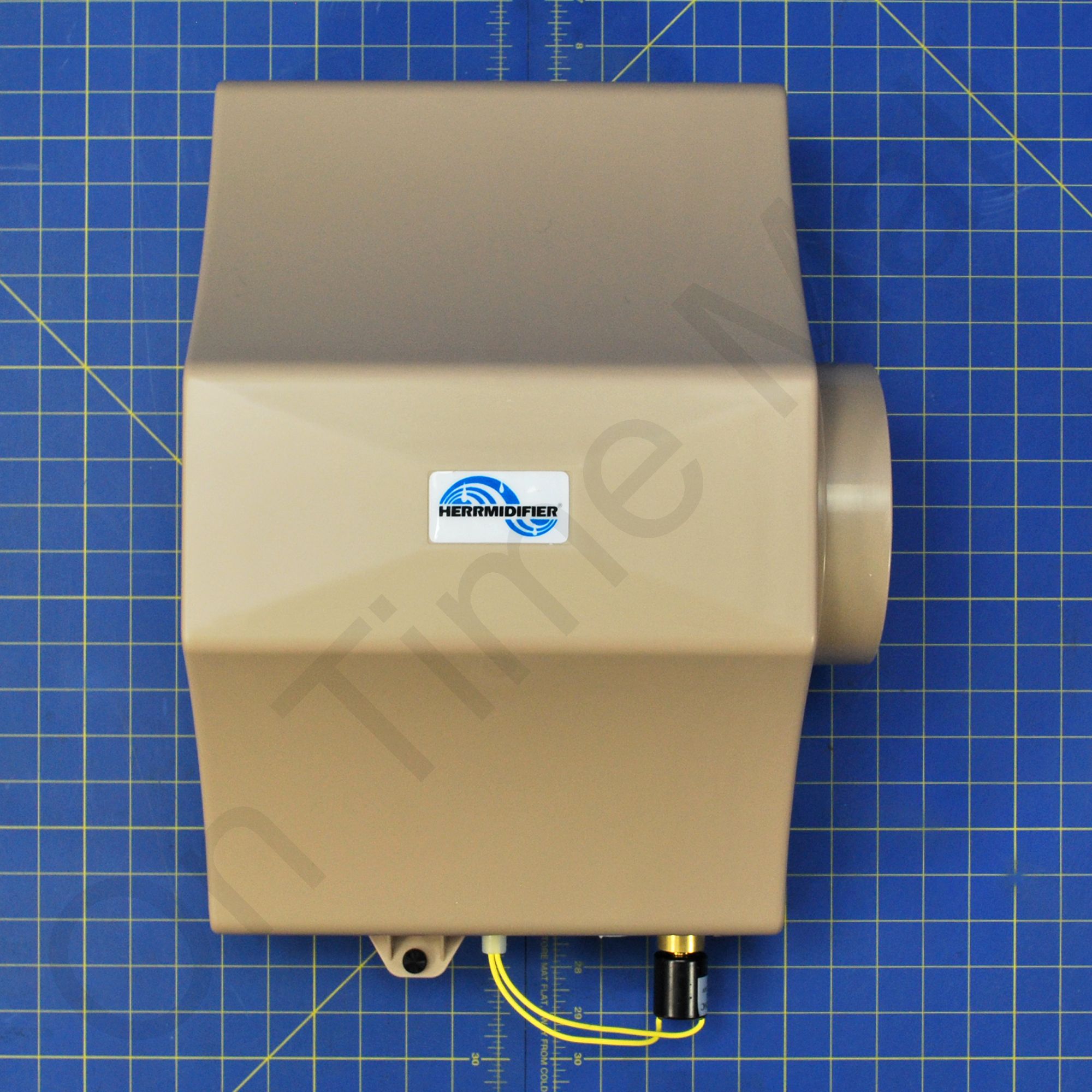

Trion G300 Humidifier
Overview

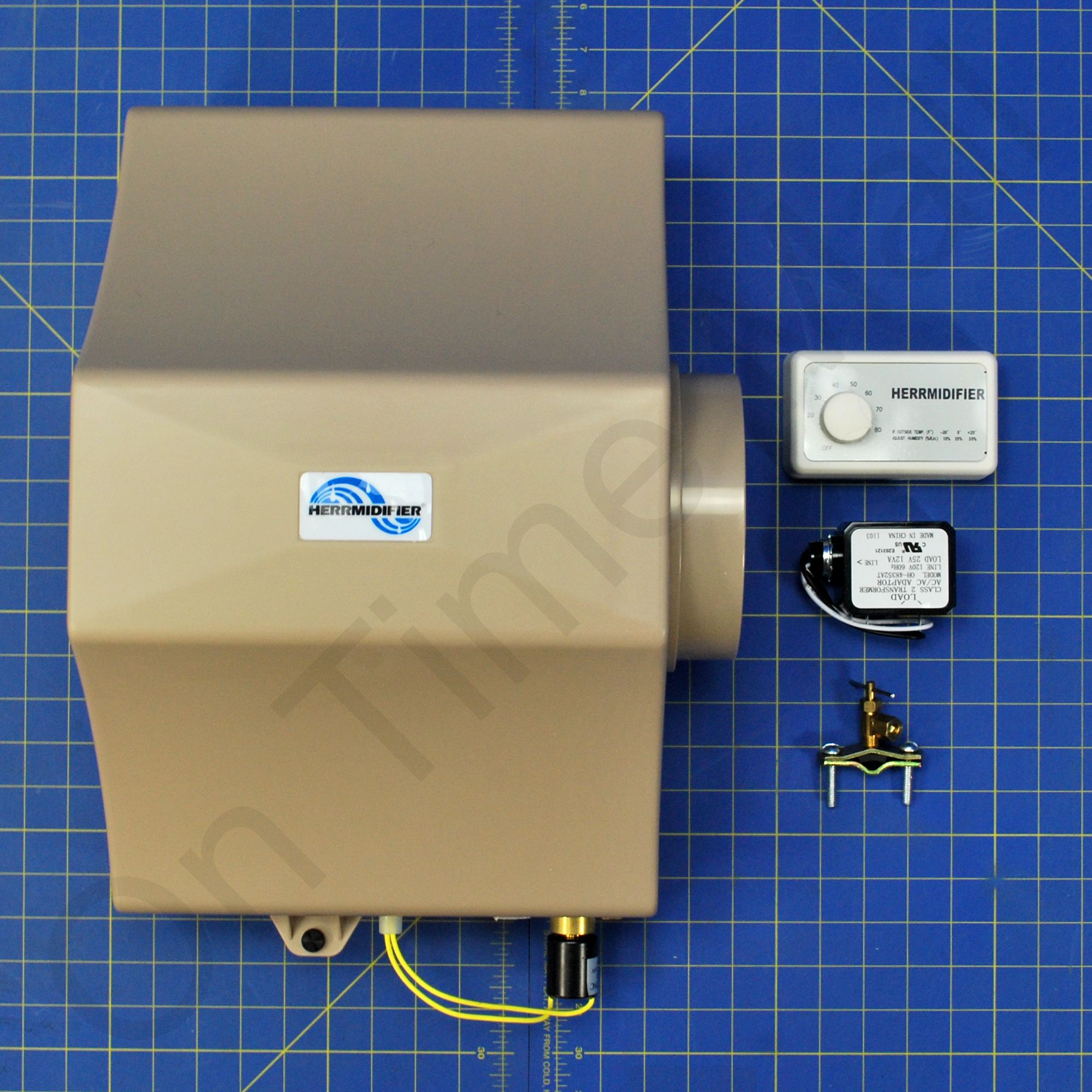

Trion Whole house humidifier, manufactured by Trion Corp. The Model G300 Bypass Humidifier was designed with ease of service in mind. Installed on the warm air plenum or return duct of a forced air furnace. This model constantly flushes away trouble causing minerals not deposited on the replaceable humidifier filter and provides exactly the right amount of moisture in vapor form. Has 6 bypass duct collar that is switchable to either side.
- Capacity: 14.4 GPD At 120 Degree Plenum
- SQ FT Recommended: Loose 1000, Average 2000, Tight 3500

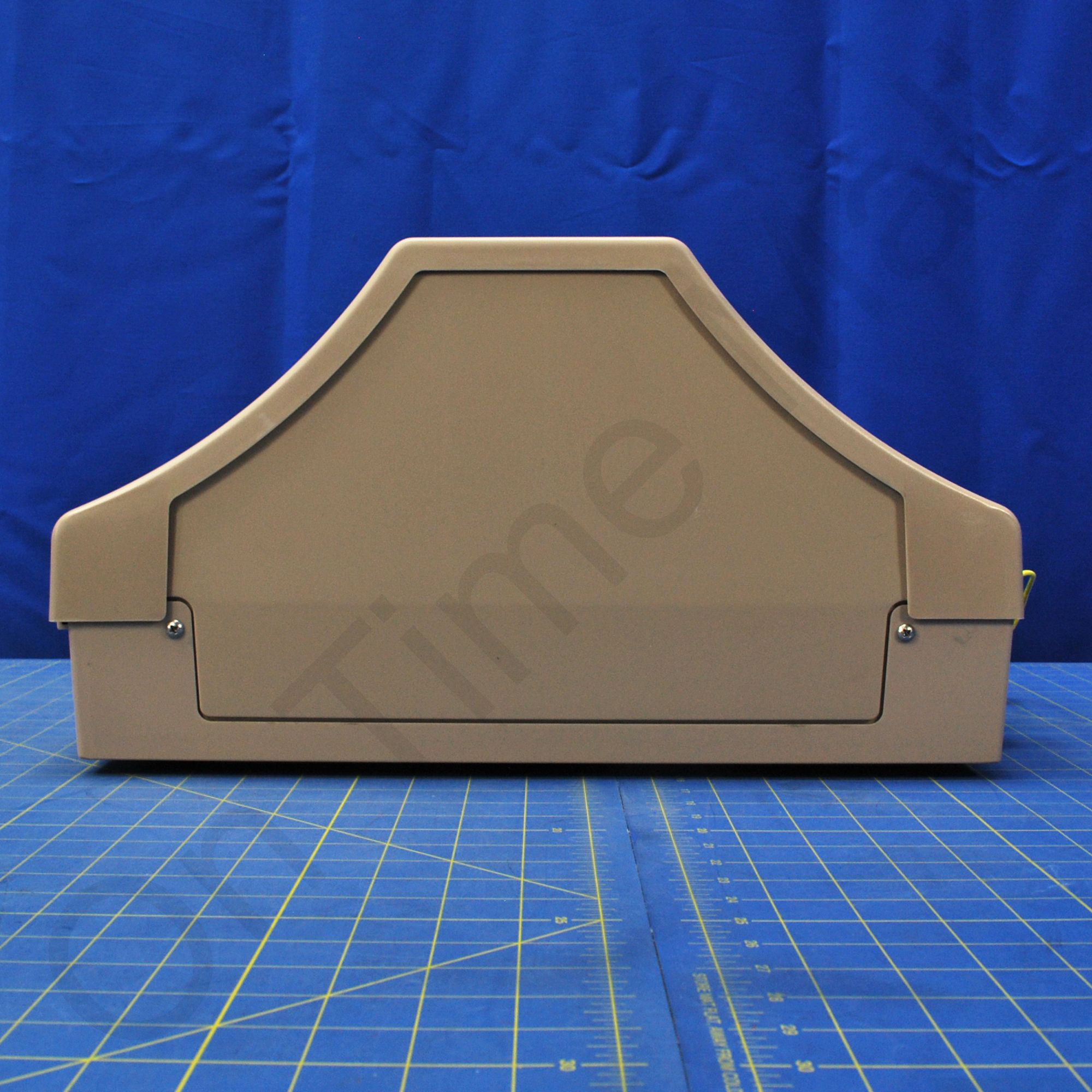

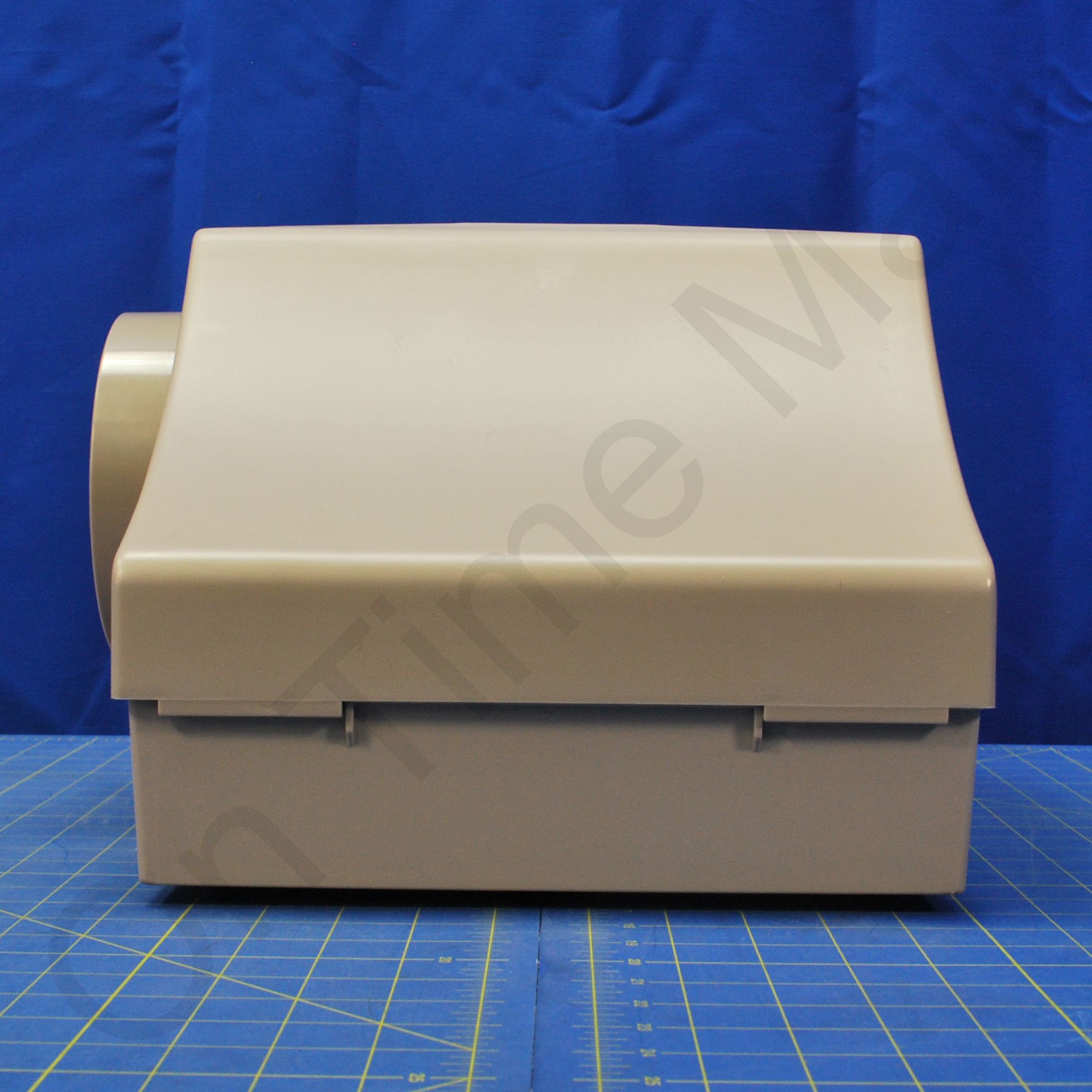

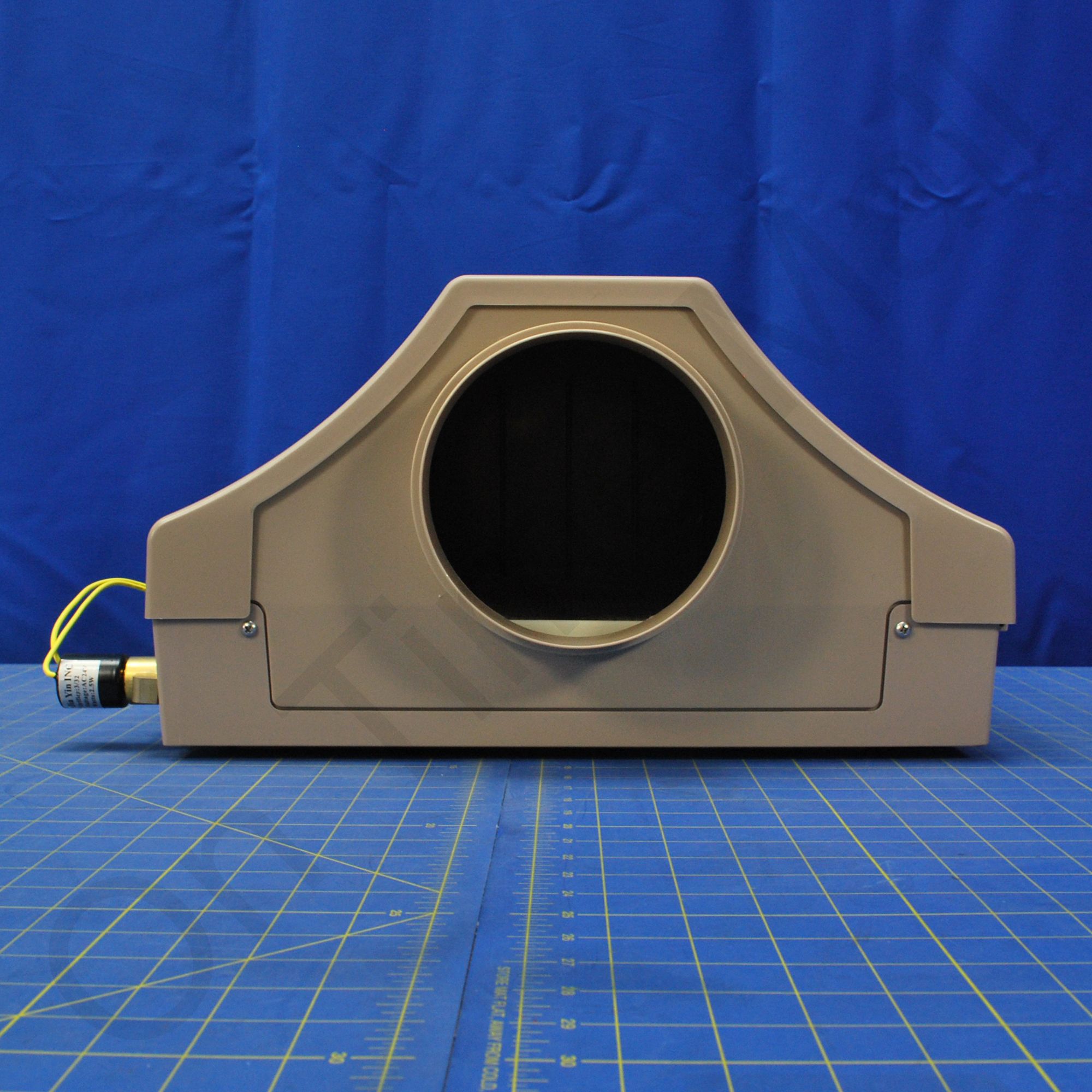

- Unit Dimensions: 11.5 W x 16.5 H x 9.5 D With 6 IN Round Collar
- Plenum Opening: 8.58 W x 10.75 H

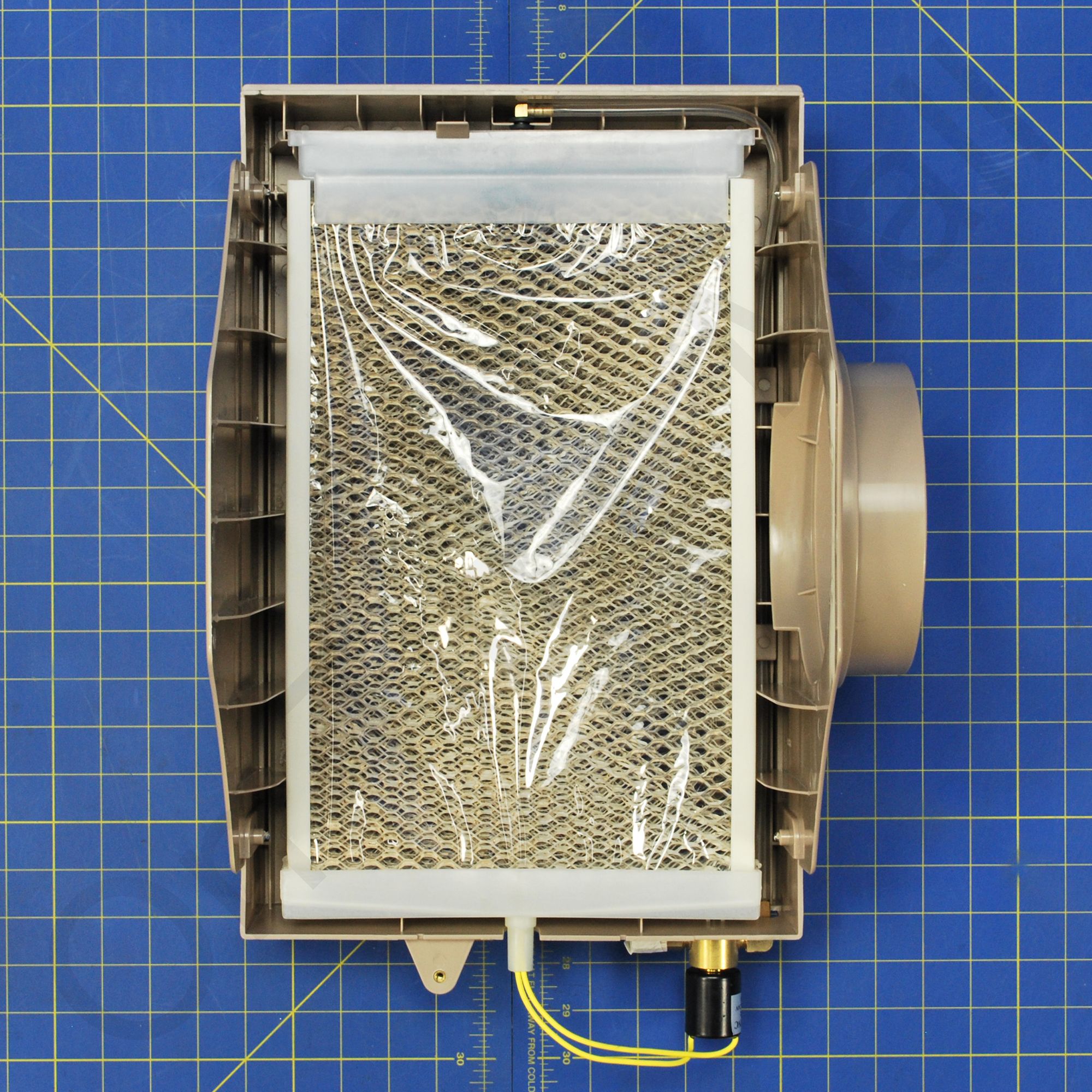

- Evaporator Filter: G116

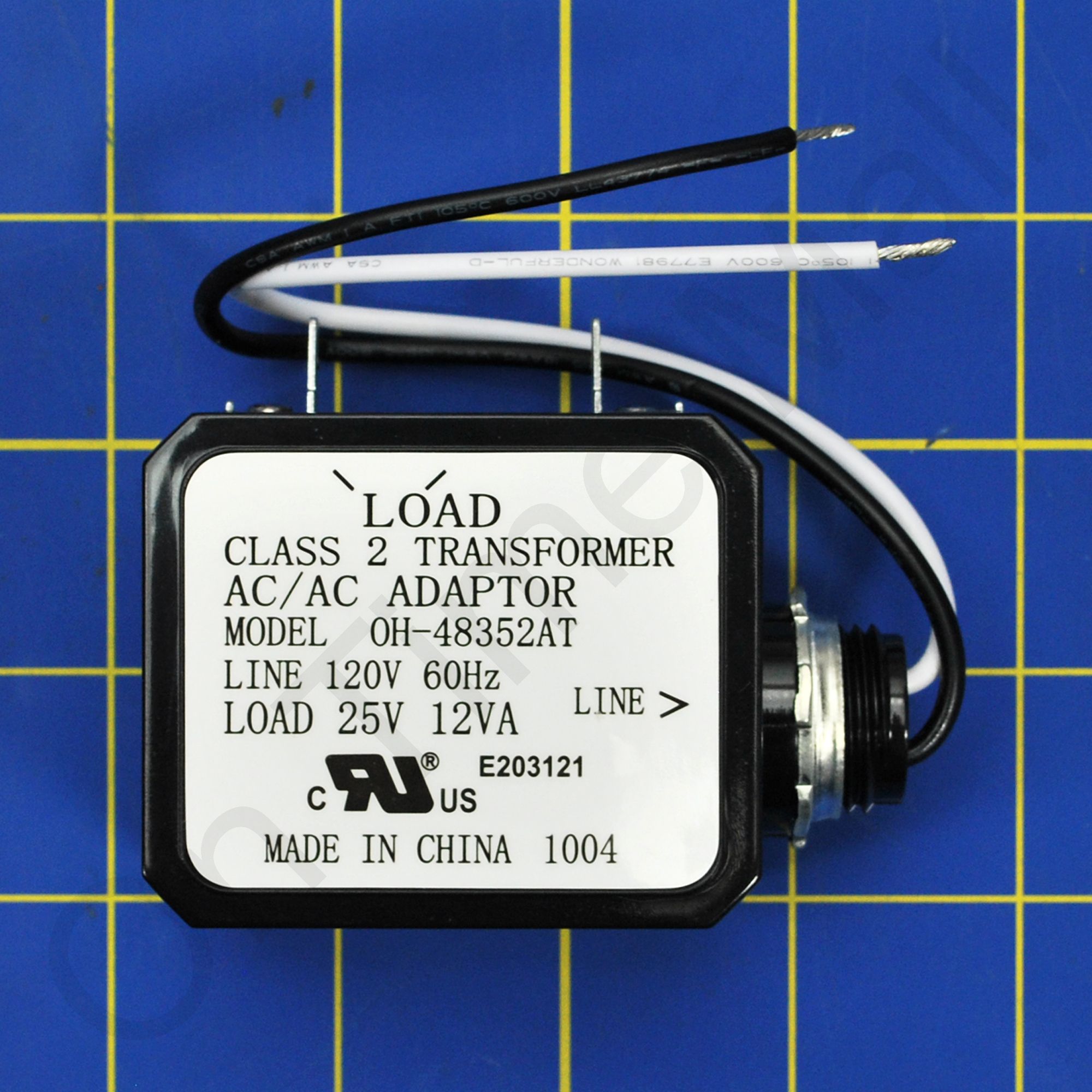

- Electrical: 24 V 60 HZ
- Drain Connection: 0.5 IN ID Plastic Hose

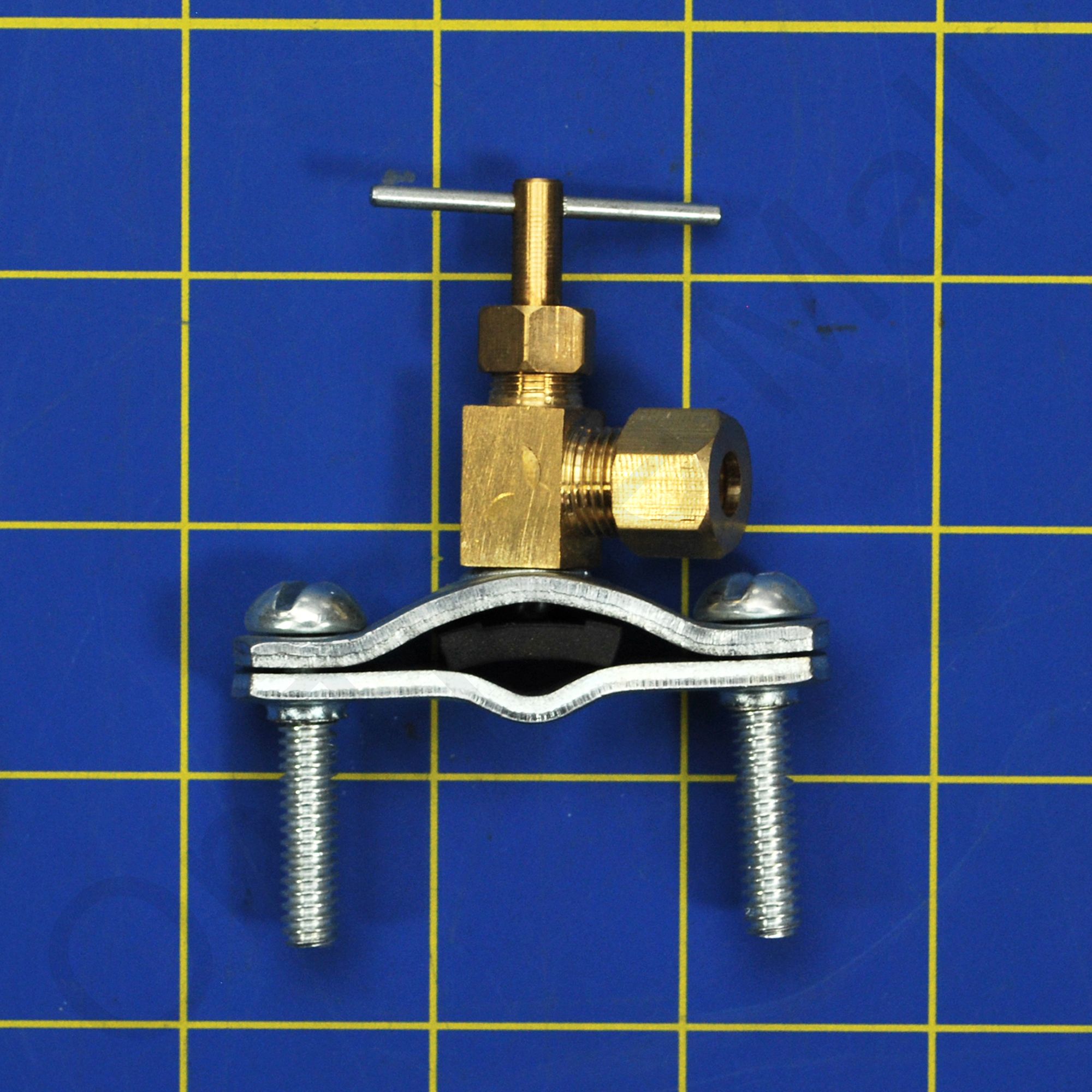

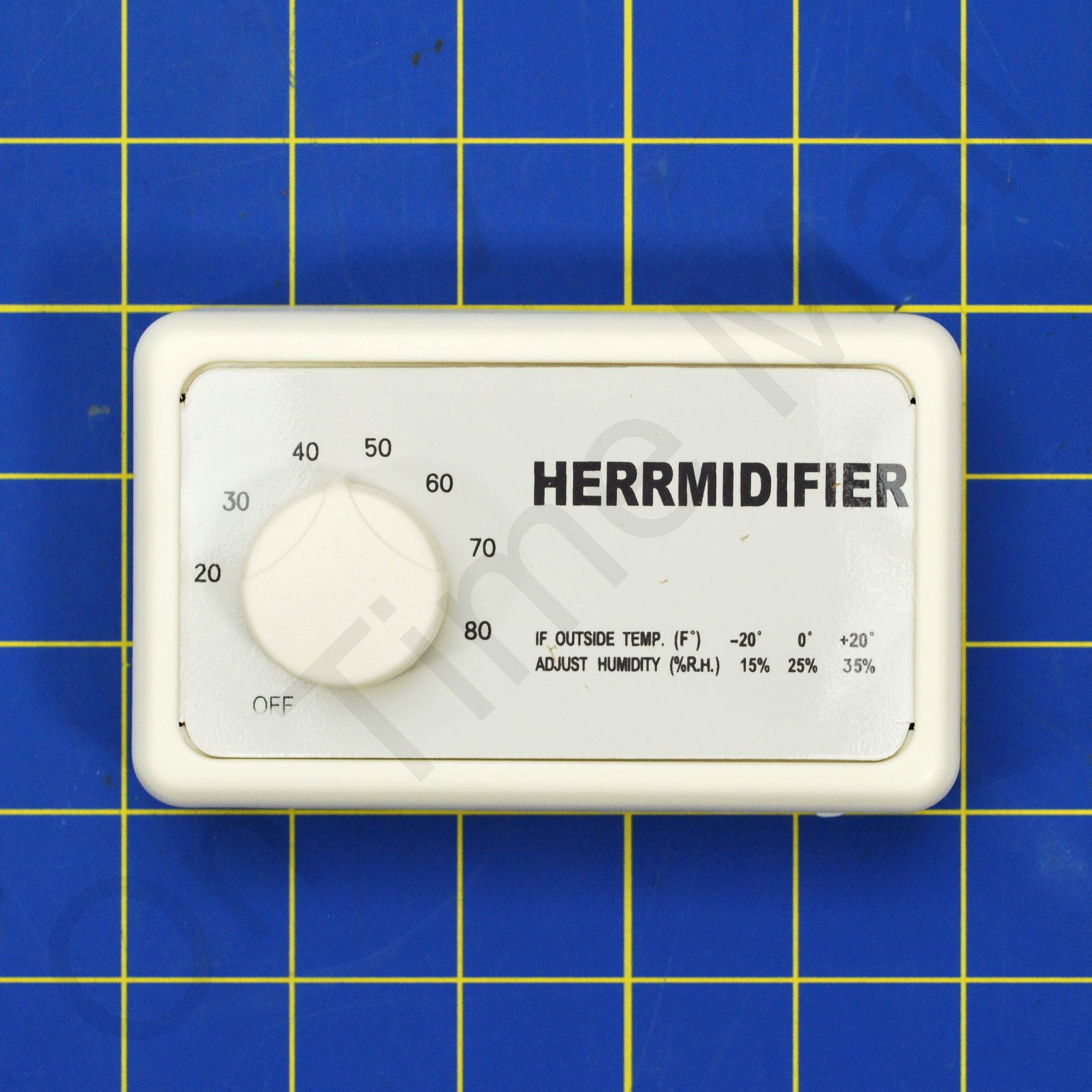

- Included: Duct or Wall Mount Humidistat & Saddle Valve
Maintenance
This model requires replacement of the humidifier filter at least once per year.
Specifications
Manufacturer | Trion |
---|---|
Product Type | Replacement Part |
Product Length | 16.500 |
Product Width | 11.500 |
Product Height | 9.500 |
