Trion Air Boss T2600 Electronic Air Cleaner

Search Results for

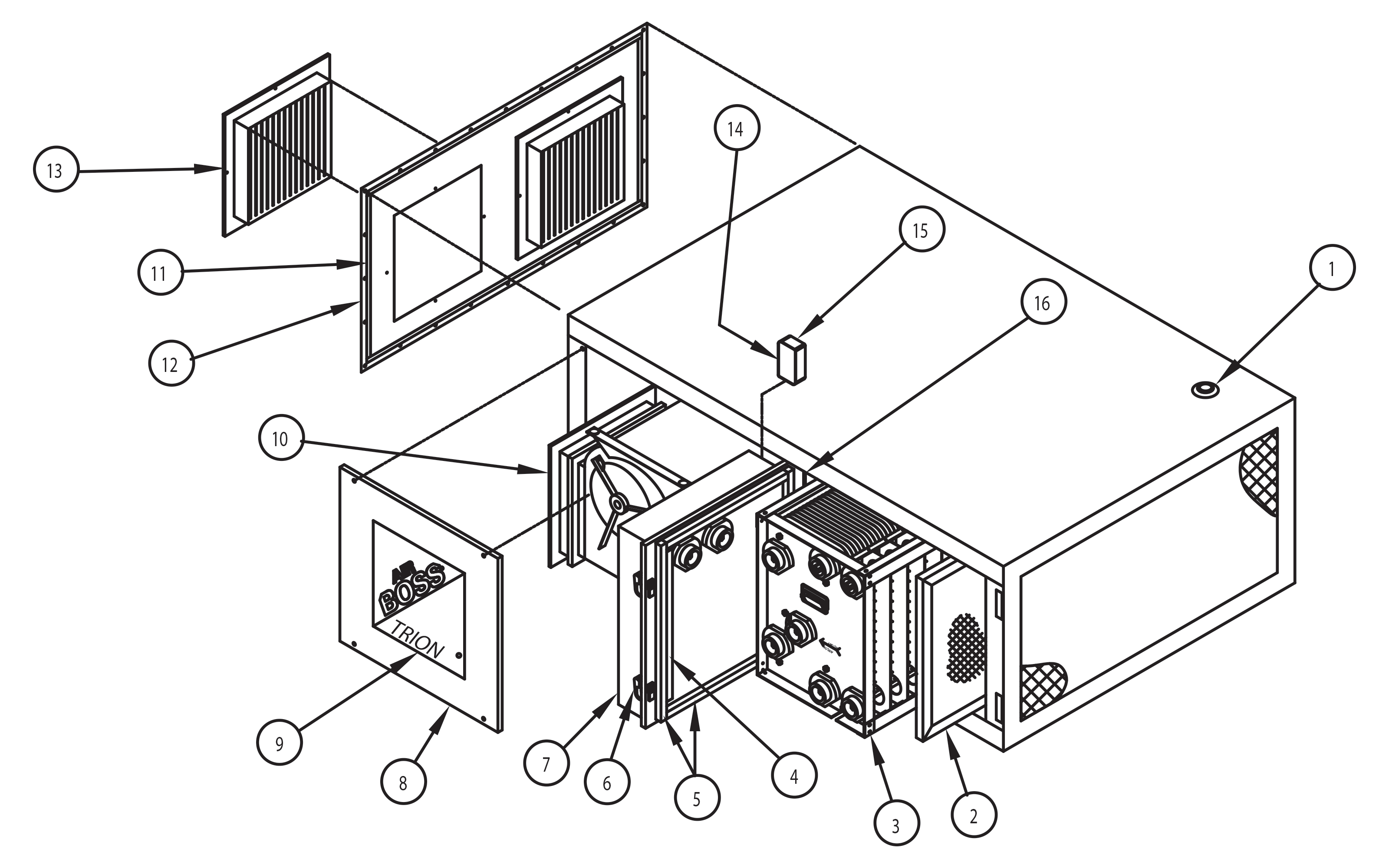

    Unit Assembly

    Diagram

    Unit Assembly
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    16

    Unit Assembly

    1. 1
      Cap Plug
      Cap Plug
      SKU: TRN247962002
      $1.00
    2. 2
      Aluminum Filter
      Aluminum Filter
      SKU: TRN224451006
      $114.68
    3. 3
      Collector Cell
      Collector Cell
      SKU: TRN450568001
    4. 4
      Gasket Material
      Gasket Material
      SKU: TRN224779028
      $10.26
    5. 5
      Gasket Material
      Gasket Material
      SKU: TRN224779015
      $16.33
    6. 6
      Turn Fastener
      Turn Fastener
      SKU: TRN334562005
      $87.72
    7. 7
      Enclosure Door
      Enclosure Door
      SKU: TRN348667001
      $347.56
    8. 8
      Blower Access Door Assembly
    9. 9
      Label
      Label
      SKU: TRN252029002
    10. 10
      Blower Assembly
      Blower Assembly
      SKU: TRN437945001
      $2,146.84
    11. 11
      Gasket
      Gasket
      SKU: TRN224779026
    12. 12
      Outlet Panel
      Outlet Panel
      SKU: TRN337944002
    13. 13
      Outlet Grill
      Outlet Grill
      SKU: TRN69000000205
    14. 14
      Outlet Box Cover
      Outlet Box Cover
      SKU: TRN149882001
      $29.40
    15. 15
      Outlet Box
      Outlet Box
      SKU: TRN249884001
      $140.28
    16. 16
      Zinc Hinge
      Zinc Hinge
      SKU: TRN146442001
      $52.47
    Blower Motor Assembly

    Diagram

    Blower Motor Assembly
    2
    3
    4
    5
    6
    7/8
    9
    10
    11
    12
    13
    14
    15
    16

    Blower Motor Assembly

    1. 2
      Blower Housing
      Blower Housing
      SKU: TRN337923101
    2. 2
      Blower Wheel
      Blower Wheel
      SKU: TRN337923102
    3. 3
      Blower Right Foot
      Blower Right Foot
      SKU: TRN337923104
    4. 4
      Blower Left Foot
      Blower Left Foot
      SKU: TRN337923105
    5. 5
      Bearing Frame
      Bearing Frame
      SKU: TRN337923103
    6. 6
      Ball Bearing
      Ball Bearing
      SKU: TRN6200000030100
    7. 7/8
      Shaft Key
      Shaft Key
      SKU: TRN1250120007
    8. 9
      Motor Mounting Plate
      Motor Mounting Plate
      SKU: TRN343636001
    9. 10
      Isolator Foot
      Isolator Foot
      SKU: TRN425541114
      $23.96
    10. 11
      Motor Pulley
      Motor Pulley
      SKU: TRN125699003
    11. 12
      Belt
      Belt
      SKU: TRN220926032
    12. 13
      Pulley Blower
      Pulley Blower
      SKU: TRN124053072
    13. 14
      Gasket Material
      Gasket Material
      SKU: TRN224779028
      $10.26
    14. 15
      Blower Gasket Flange
      Blower Gasket Flange
      SKU: TRN337849001
    15. 16
      Blower Motor
      Blower Motor
      SKU: TRN141434001
      $1,302.48
    16. 16
      Motor
      Motor
      SKU: TRN140197001
    17. 16
      Motor
      Motor
      SKU: TRN137128001
    18. 16
      Motor
      Motor
      SKU: TRN142756001
    Collector Cell

    Diagram

    Collector Cell
    1
    2
    3
    4
    5
    6
    6
    7
    8
    9
    10
    11
    12
    13
    14
    15
    15
    16
    16
    17
    18
    19
    20

    Collector Cell

    1. 1
      End Plate LH
      End Plate LH
      SKU: TRN450551001
    2. 2
      End Plate RH
      End Plate RH
      SKU: TRN450551002
    3. 3
      Ground Plate
      Ground Plate
      SKU: TRN226555001
      $16.73
    4. 4
      Spacer
      Spacer
      SKU: TRN220107070
      $5.47
    5. 5
      Cell Brace
      Cell Brace
      SKU: TRN247924002
    6. 6
      Insulator
      Insulator
      SKU: TRN352212002
      $82.14
    7. 7
      Handle
      Handle
      SKU: TRN124537001
    8. 8
      Rivet
      Rivet
      SKU: TRN220976044
    9. 9
      Contact Assembly
      Contact Assembly
      SKU: TRN147704002
      $45.94
    10. 10
      Spacer
      Spacer
      SKU: TRN220107111
    11. 11
      Spacer
      Spacer
      SKU: TRN220107112
      $72.98
    12. 12
      Ionizer Ground Plate
      Ionizer Ground Plate
      SKU: TRN247782001
    13. 13
      Spiked Ionizer Blade
      Spiked Ionizer Blade
      SKU: TRN347892001
    14. 14
      Brace
      Brace
      SKU: TRN250567001
    15. 15
      Tie Rod
      Tie Rod
      SKU: TRN233137031
    16. 16
      Tie Rod
      Tie Rod
      SKU: TRN233137030
    17. 17
      Blower Rod
      Blower Rod
      SKU: TRN233137015
    18. 18
      Ionizer Ground Spacer
      Ionizer Ground Spacer
      SKU: TRN220107109
    19. 19
      Spike Spacer
      Spike Spacer
      SKU: TRN220107110
    20. 20
      Ionizer Ground Spacer
      Ionizer Ground Spacer
      SKU: TRN121993006
    Enclosure Assembly

    Diagram

    Enclosure Assembly
    1
    1
    2
    3
    5
    6
    7
    8
    9
    10
    11
    12
    13
    15
    16
    17
    18
    18
    19
    20

    Enclosure Assembly

    1. 1
      Cell Door
      Cell Door
      SKU: TRN457056001
      $539.14
    2. 2
      Hex Spacer
      Hex Spacer
      SKU: TRN119036
    3. 3
      Circuit Board
      Circuit Board
      SKU: TRN347891026
    4. 5
      Interlock Switch Bracker
      Interlock Switch Bracker
      SKU: TRN248604001
    5. 6
      Door Switch
      Door Switch
      SKU: TRN244833001
      $17.08
    6. 7
      Contactor
      Contactor
      SKU: TRN249005001
    7. 8
      Contactor
      Contactor
      SKU: TRN247292001
      $107.94
    8. 9
      Light Switch Bracket
      Light Switch Bracket
      SKU: TRN348605001
    9. 10
      Indicator Lamp
      Indicator Lamp
      SKU: TRN241101009
      $57.46
    10. 11
      On Off Swtch
      On Off Swtch
      SKU: TRN138586001
      $8.97
    11. 12
      Gasket
      Gasket
      SKU: TRN224779012
    12. 13
      Gasket
      Gasket
      SKU: TRN224779014
    13. 15
      Transformer
      Transformer
      SKU: TRN248655005
      $394.62
    14. 15
      Transformer
      Transformer
      SKU: TRN248655004
      $575.97
    15. 15
      Transformer
      Transformer
      SKU: TRN248655007
    16. 16
      Wiring Label
      Wiring Label
      SKU: TRN121390001
    17. 17
      Strain Relief Bushing
      Strain Relief Bushing
      SKU: TRN143817001
    18. 18
      Standoff Insulator
      Standoff Insulator
      SKU: TRN353228002
      $39.08
    19. 19
      Spacer
      Spacer
      SKU: TRN222781033
    20. 20
      Overload Relay
      Overload Relay
      SKU: TRN250418007
