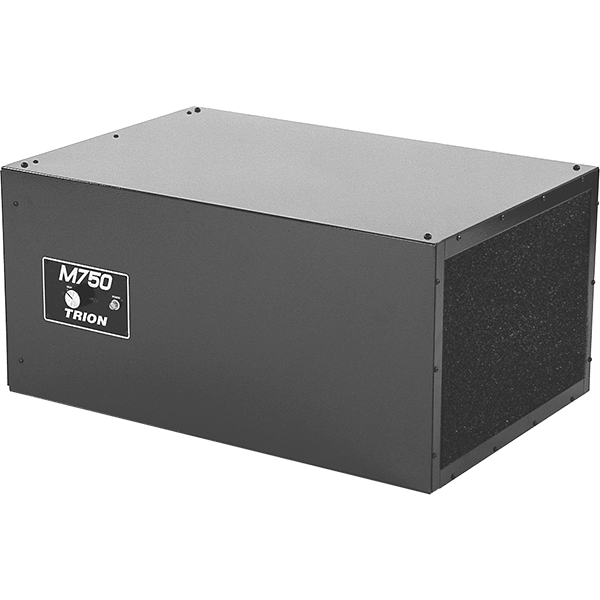

Trion M750 Air Cleaner

Search Results for

    Parts

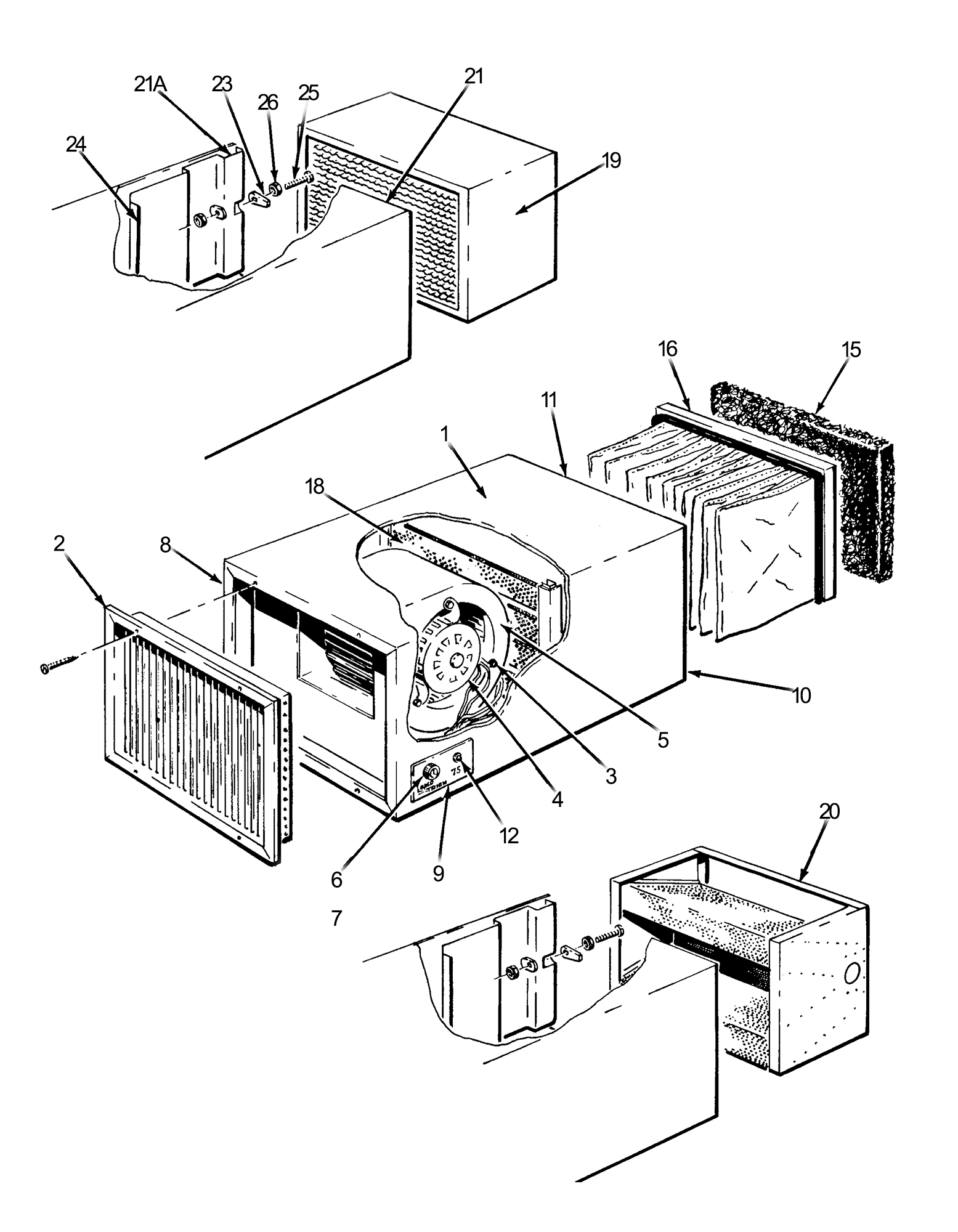

    Diagram

    Parts
    1
    2
    3
    4
    5
    6
    7
    8
    9
    10
    11
    12
    15
    16
    18
    19
    20
    21
    21A
    23
    24
    25
    26

    Parts

    1. 1
      Cabinet
      Cabinet
      SKU: TRN750900000
    2. 2
      Register Outlet
      Register Outlet
      SKU: TRN750800100
    3. 3
      Motor Mounting Screw
      Motor Mounting Screw
      SKU: TRN137343404
    4. 4
      Blower Motor
      Blower Motor
      SKU: TRN7109000000004
      $9,999.99
    5. 5
      Blower & Wheel Assembly
      Blower & Wheel Assembly
      SKU: TRN62000001216
    6. 6
      Speed Control
      Speed Control
      SKU: TRN150010000203
      $142.50
    7. 7
      Knob
      Knob
      SKU: TRN135379001
      $8.79
    8. 8
      Power Cable
      Power Cable
      SKU: TRN750100002
    9. 9
      Label
      Label
      SKU: TRN750100001
    10. 10
       Frame
      Frame
      SKU: TRN750900200
    11. 11
      Bottom Frame
      Bottom Frame
      SKU: TRN750900300
    12. 12
      Light
      Light
      SKU: TRN7300000103
    13. 15
      Prefilter
      Prefilter
      SKU: TRN750100003
      $133.56
    14. 16
      Long Bag Filter
      Long Bag Filter
      SKU: TRN75030000001
    15. 16
      Bag Filter
      Bag Filter
      SKU: TRN75030000002
    16. 16
      Textwood Bag
      Textwood Bag
      SKU: TRN475000000004
    17. 18
      Absorber Kit
      Absorber Kit
      SKU: TRN750800000
      $345.41
    18. 18
      Activated Alumina
      Activated Alumina
      SKU: TRN55900000402
      $29.00
    19. 18
      Potassium Permanganate Pellets
      Potassium Permanganate Pellets
      SKU: TRN55900000403
    20. 19
      HEPA Filter
      HEPA Filter
      SKU: TRN475000000003
    21. 20
      Absorber Module
      Absorber Module
      SKU: TRN750800200
      $915.74
    22. 20
      Activated Alumina
      Activated Alumina
      SKU: TRN55900000402
      $29.00
    23. 20
      Potassium Permanganate Pellets
      Potassium Permanganate Pellets
      SKU: TRN55900000403
    24. 21
      Top-Bottom Frame
      Top-Bottom Frame
      SKU: TRN750902000
    25. 21A
      Side Frame
      Side Frame
      SKU: TRN750902100
    26. 23
      Neoprene Gasket
      Neoprene Gasket
      SKU: TRN224779023
      $4.16
    27. 24
      Screw
      Screw
      SKU: TRN120034519
      $0.86
    28. 25
      Screw
      Screw
      SKU: TRN123149001
      $0.45
    29. 26
      Mounting Kit
      Mounting Kit
      SKU: TRN750100009

    Parts Not In Diagram

    1. Not Shown
      Hanging Kit
      Hanging Kit
      SKU: TRN750700008
    2. Not Shown
      Owners Manual
      Owners Manual
      SKU: TRN137405001
    3. Not Shown
      Pawl
      Pawl
      SKU: TRN137564001
      $5.76
