Trion MAC 10 LE-DC Fan Filter Air Cleaner
Search Results for
Select a diagram to view its parts
Cabinet
Diagram
1
2
3
4
5
7
9
Cabinet
Cabinet Not In Diagram

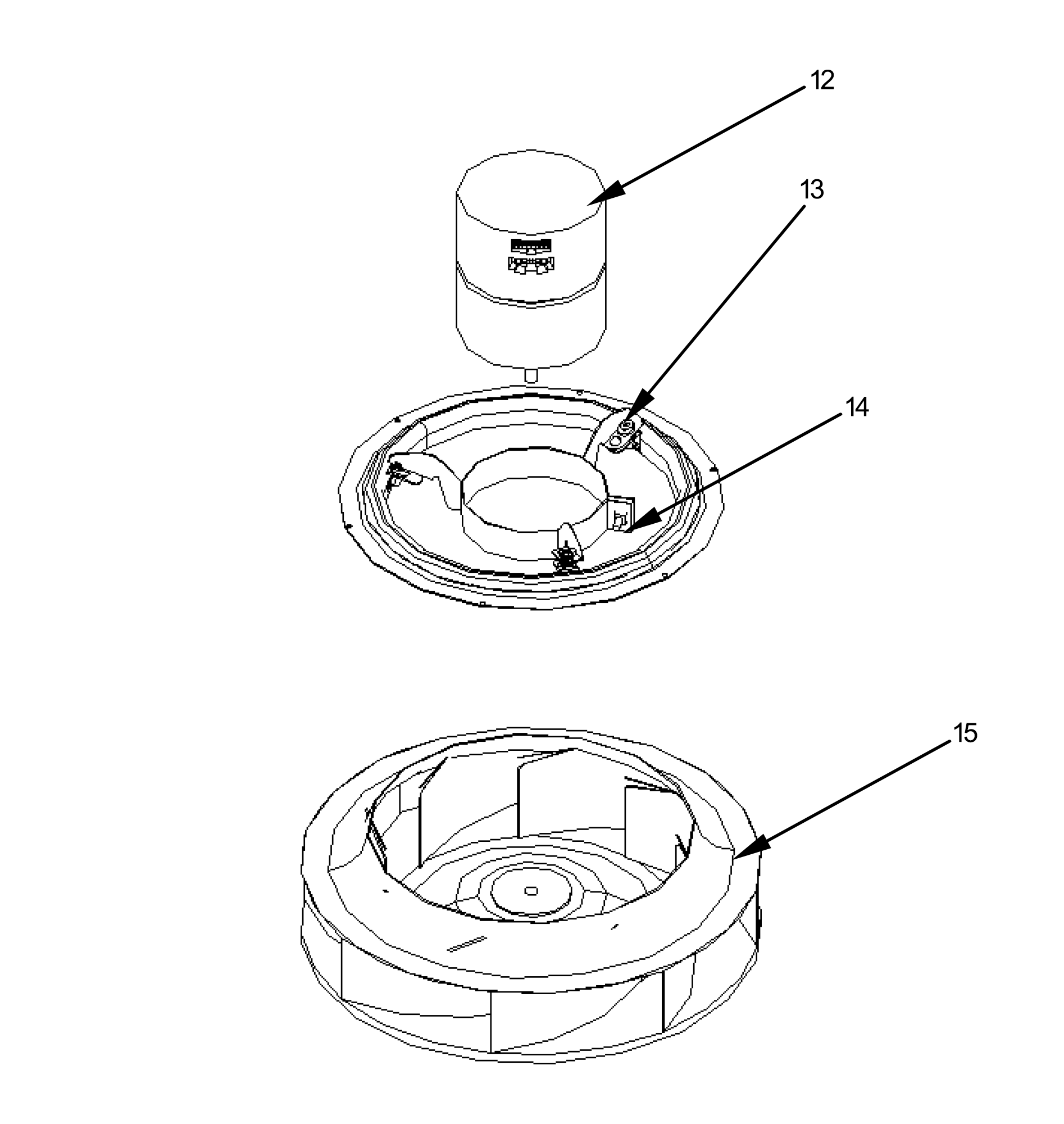

Motor Blower Components
Diagram
12
13
15
Motor Blower Components
Documentation
Repair Help
View available resources
Overview
The Trion MAC 10 LE-DC is a self contained fan filter unit. Designed for clean rooms and place in cieling. Contains its own built in blower assembly. Holds special HEPA filters and is available in 2 x 2 size as well as 2 x 4 size. It comes in models RSR, RSRE and Standard.
Maintenance
To keep the filter in top operating condition, washing the foam prefilter is recommended every three to six months.
Steps for Cleaning:
1. To gain access to the prefilter, remove the ceiling panel next to the unit, if applicable.
2. Switch the ON-OFF switch to the off position.
3. Remove the 20”x20” prefilter from the snap-in frame.
4. Clean the prefilter by hand washing in water with a mild detergent or by using a vacuum cleaner. Allow prefilter to dry completely before replacing.
5. Reassemble by reversing the above steps.
Refer to the owner's manual for step-by-step diagrams.
Steps for Cleaning:
1. To gain access to the prefilter, remove the ceiling panel next to the unit, if applicable.
2. Switch the ON-OFF switch to the off position.
3. Remove the 20”x20” prefilter from the snap-in frame.
4. Clean the prefilter by hand washing in water with a mild detergent or by using a vacuum cleaner. Allow prefilter to dry completely before replacing.
5. Reassemble by reversing the above steps.
Refer to the owner's manual for step-by-step diagrams.
