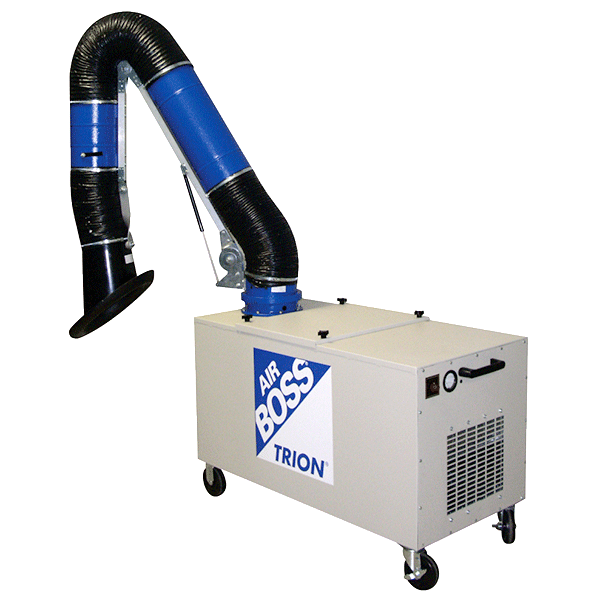

Trion Air Boss M2500M Portable Air Cleaner
Search Results for

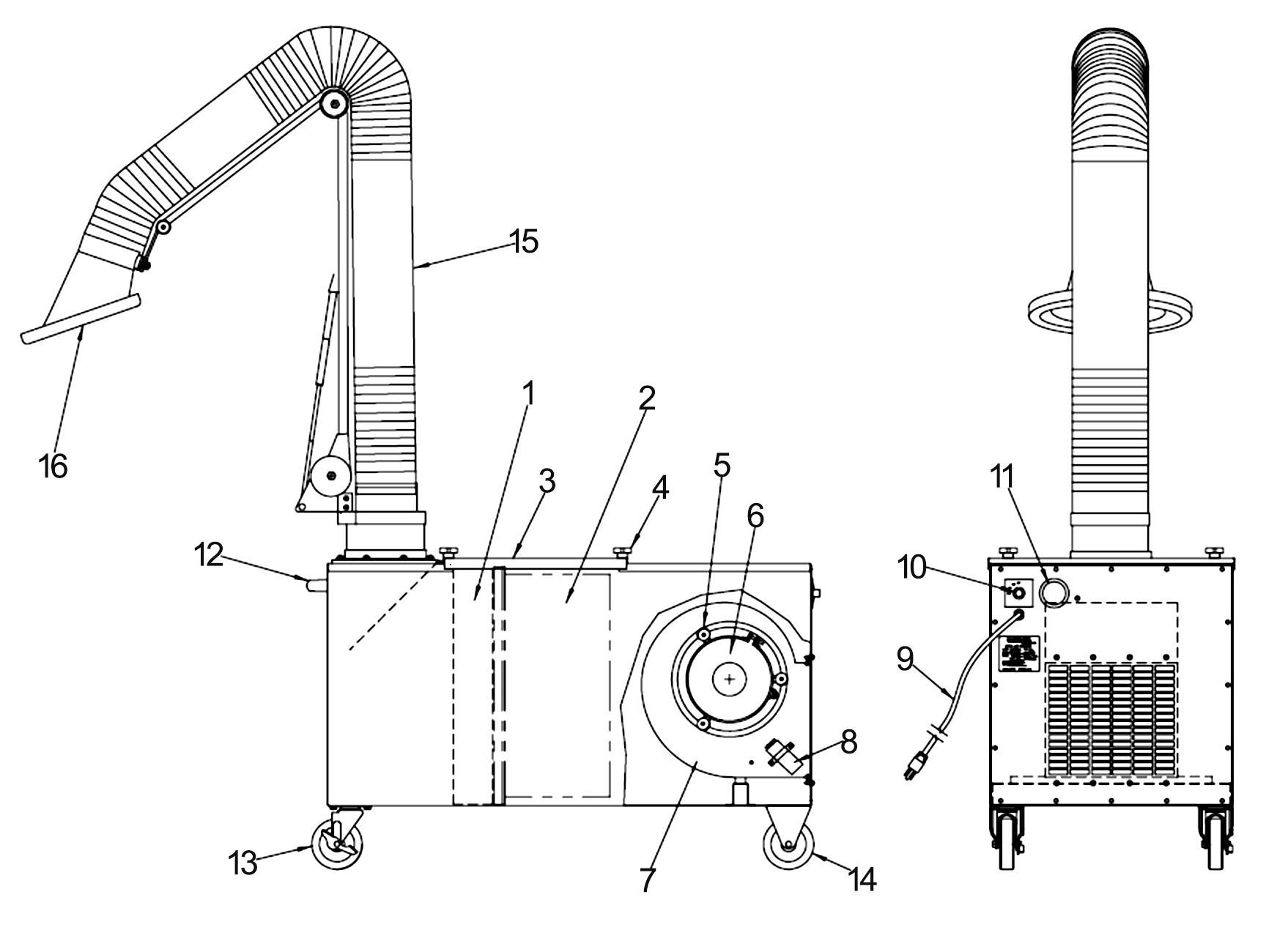

Parts
Diagram
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Parts
Documentation
Repair Help
View available resources
Overview
The Trion Air Boss M2500M Mobile Air Cleaner is designed to pick up and collect dry solid particulate such as weld fumes and industrial dust. Clean air is then discharged back into the work space. The unit is equipped with casters, a source capture arm, a filtration compartment and a blower compartment.
Maintenance
Filter Maintenance
The collecting components consist of a pre-filter and a main filter. They are accessible through the access panel on the top of the cabinet, allowing simple, fast replacement. Filters are replaced according to the reading on the pressure gauge. A pressure gauge is mounted on the blower panel at the discharge end of the cabinet. The initial reading when the unit is new is dependent on the particular main filter used in the unit.
Cabinet Maintenance
After the dirty components have been removed, an inspection of the cabinet should be made. Remove all foreign debris and dirt accumulation inside the cabinet. Check for dirt accumulation on the blower wheel blades and clean if there is a buildup. Inspect all wiring for loose connections and cracked insulation. The bearings of both blower and blower motor should be checked for signs of unusual wear.
