Trion Herrmidisteam - SS (Tap/Softened Water)
Search Results for

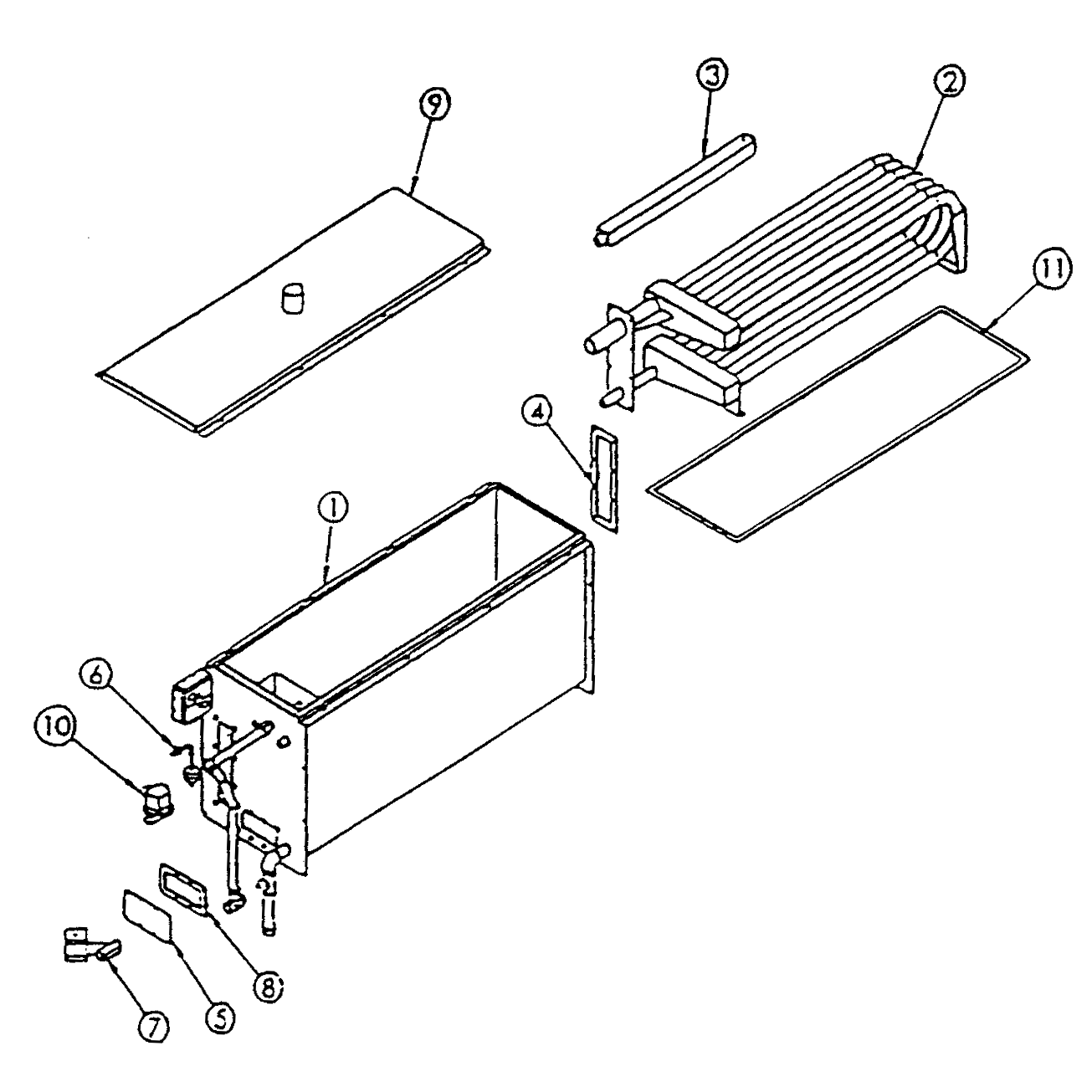

Select a diagram to view its parts
Documentation
Overview

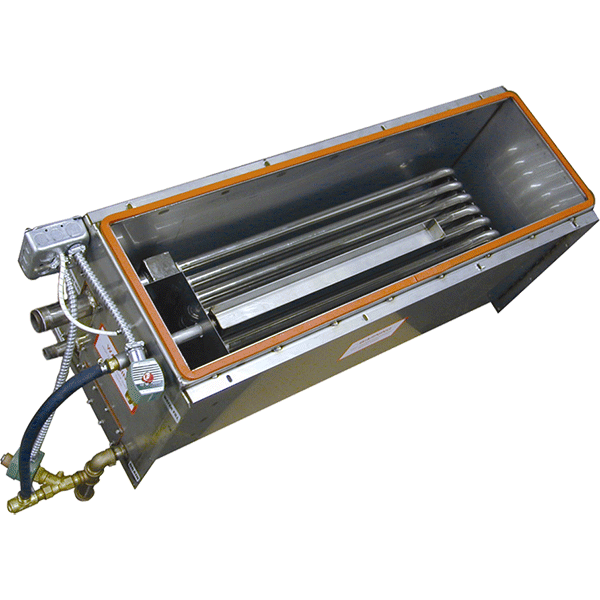

The Trion Herrmidisteam - SS (Tap/Softened) is designed for used with any raw water application. This unit is a steam to steam humidifier. It uses building steam to produce clean steam for humidification. The steam coil is made of copper with a nickel coating. The coating minimizes scale build up and facilitates scheduled cleaning and maintenance. The entire cabinet is made of stainless steel. A skimmer system is provided to automatically drain water contaminates. Also known as models SS-200c, SS-500C, SS-800C and SS-1600C.
Maintenance
Seasonal Maintenance:
1. Cleaning Tank - Remove loose scale in the tank before the build-up reaches the underside of the heat exchanger(s).
2. Cleaning Magnetic Float - Remove any scaling on movable float and the float rod using stainless steel wool. Ensure that the float moves freely.
3. Cleaning Skimmer Section - Clean scaling inside skimmer tray. Loosen deposits from the piping to tray with pipe brush. Flush the piping to remove any remaining residue.
4. Inspect Gaskets - Look for tears or improper seal replace as necessary.
5. Strainers - Clean once a year, check strainer for proper operation. Open a valve plug on the exhaust port for self cleaning.
6. Traps - Clean once a year, check for proper operation.
1. Cleaning Tank - Remove loose scale in the tank before the build-up reaches the underside of the heat exchanger(s).
2. Cleaning Magnetic Float - Remove any scaling on movable float and the float rod using stainless steel wool. Ensure that the float moves freely.
3. Cleaning Skimmer Section - Clean scaling inside skimmer tray. Loosen deposits from the piping to tray with pipe brush. Flush the piping to remove any remaining residue.
4. Inspect Gaskets - Look for tears or improper seal replace as necessary.
5. Strainers - Clean once a year, check strainer for proper operation. Open a valve plug on the exhaust port for self cleaning.
6. Traps - Clean once a year, check for proper operation.
Model Status
Model Discontinued.
