Trion GT-1761 Steam Cylinder
Overview

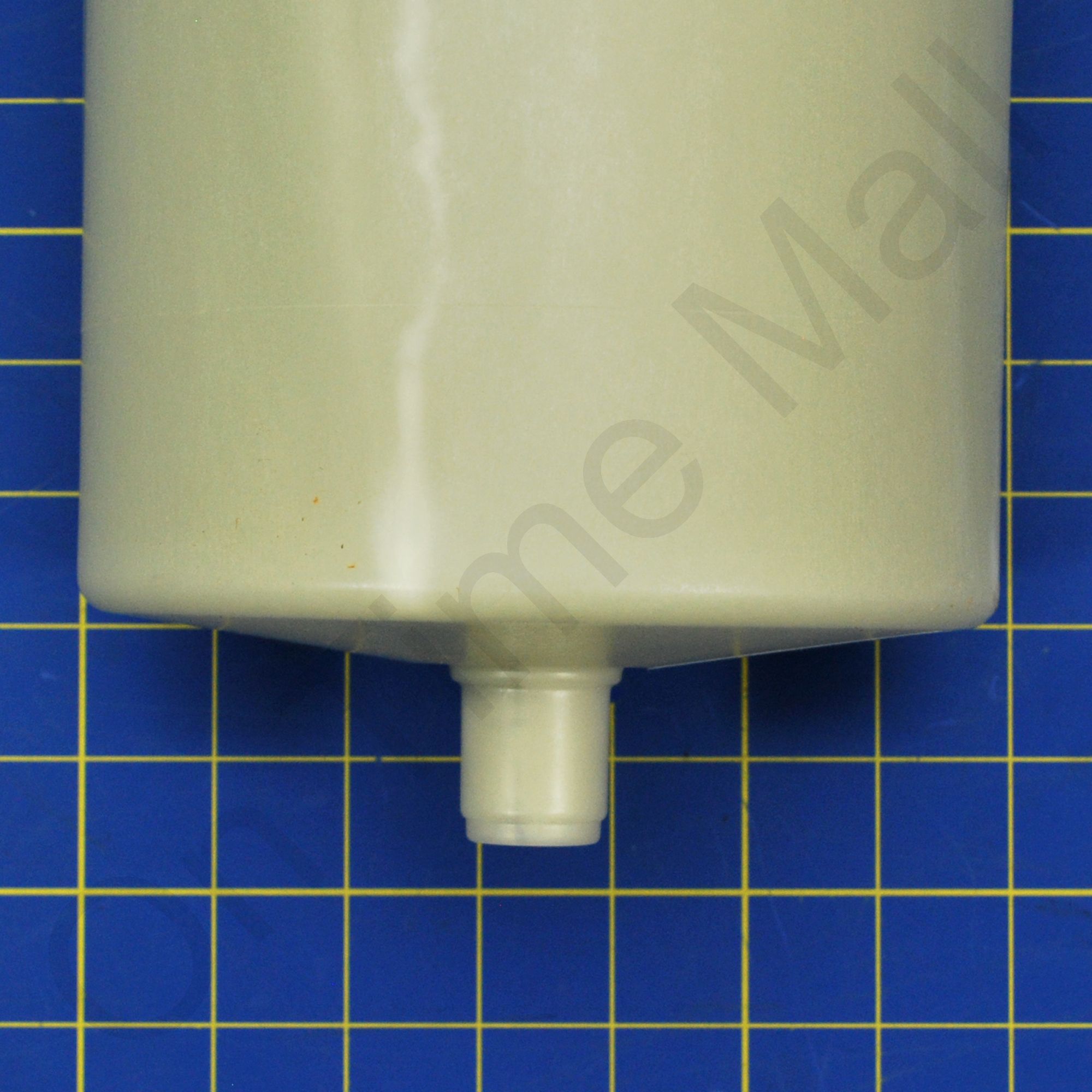

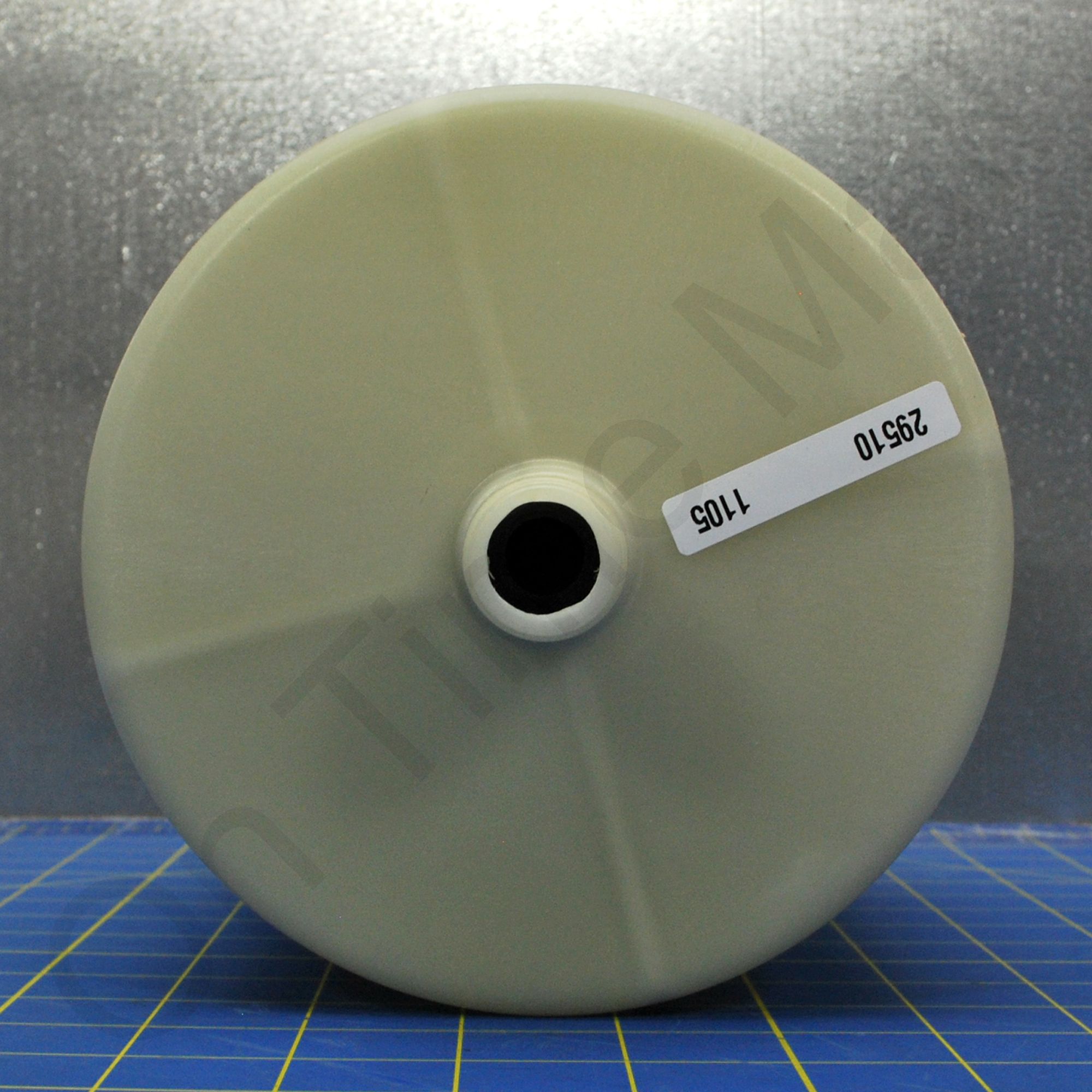

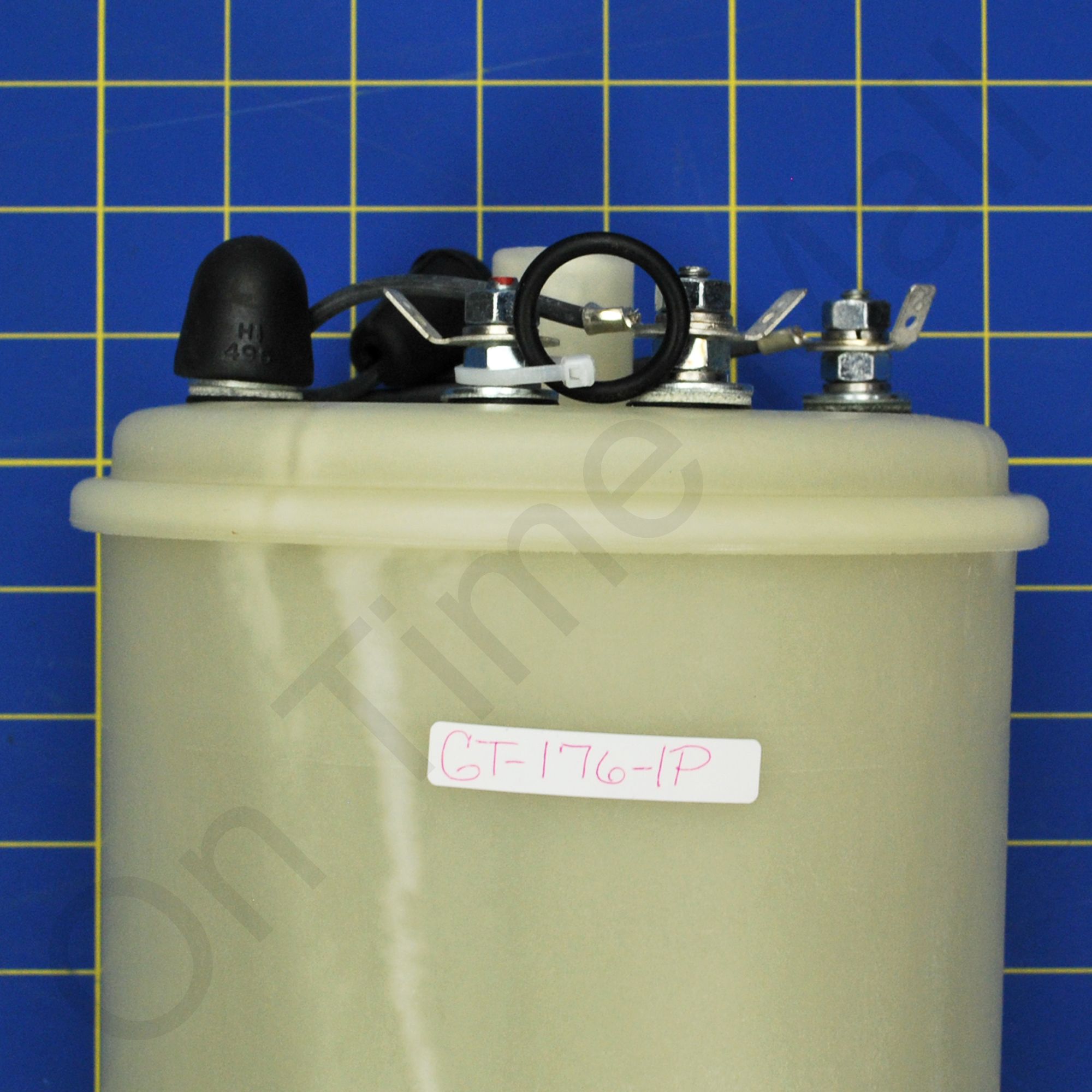

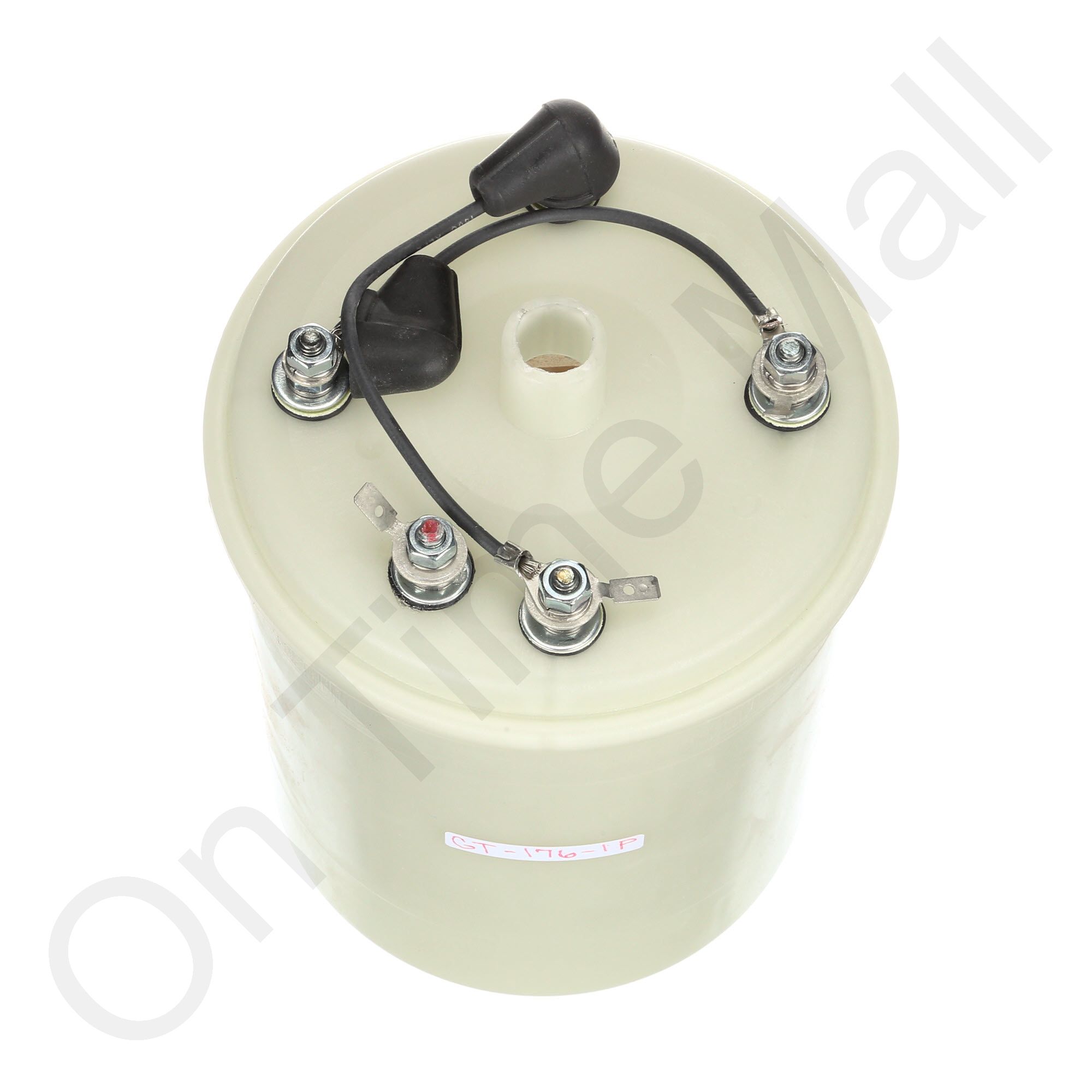

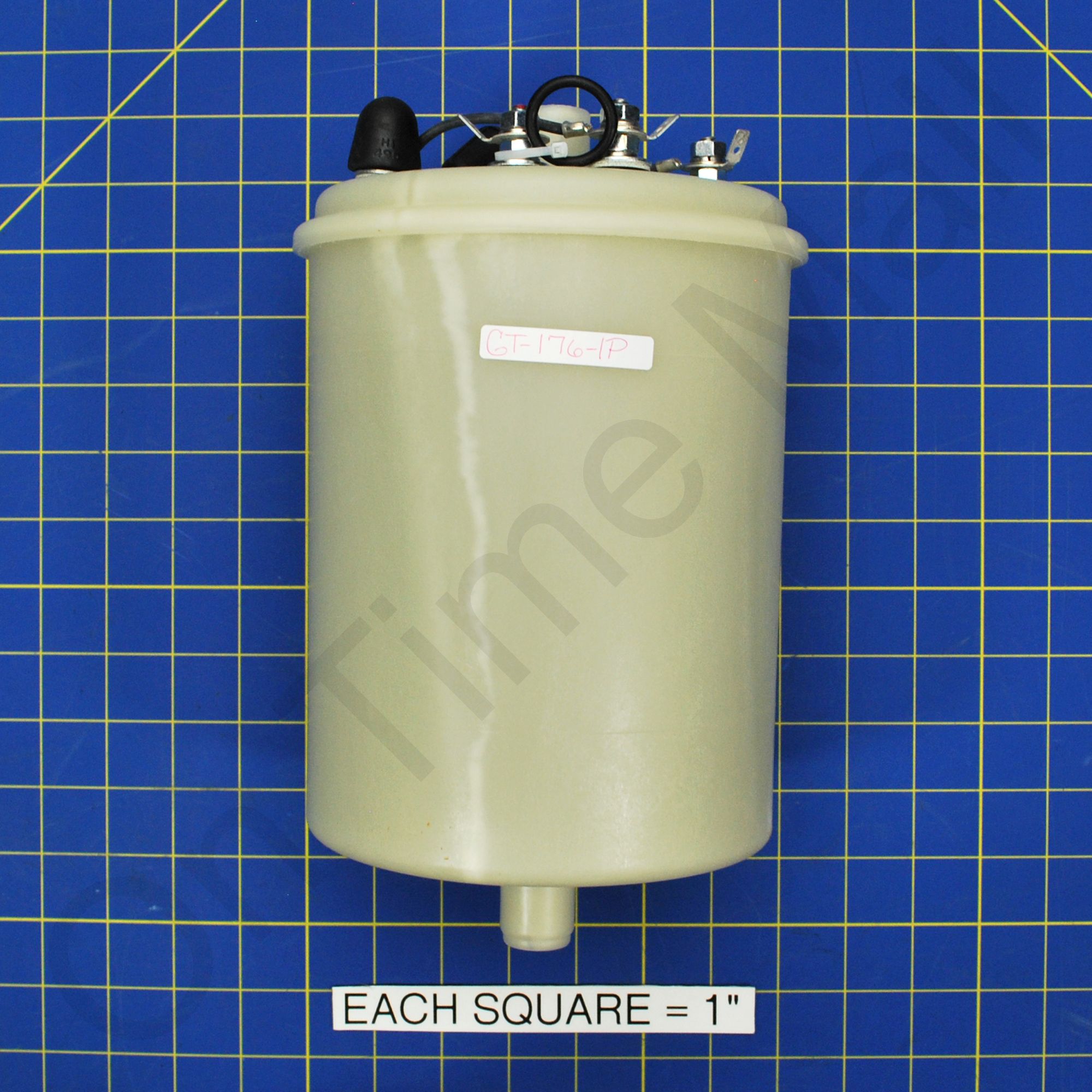

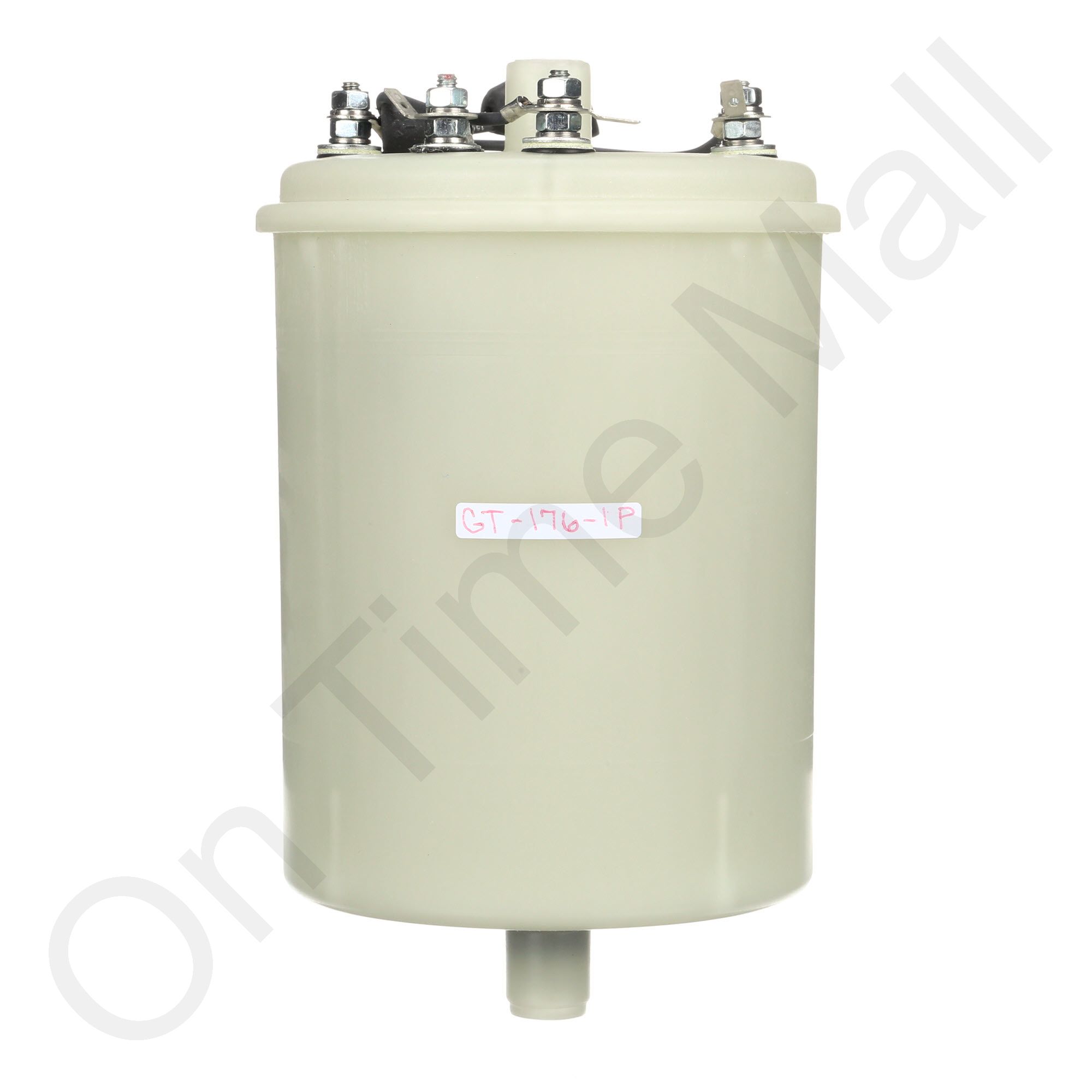

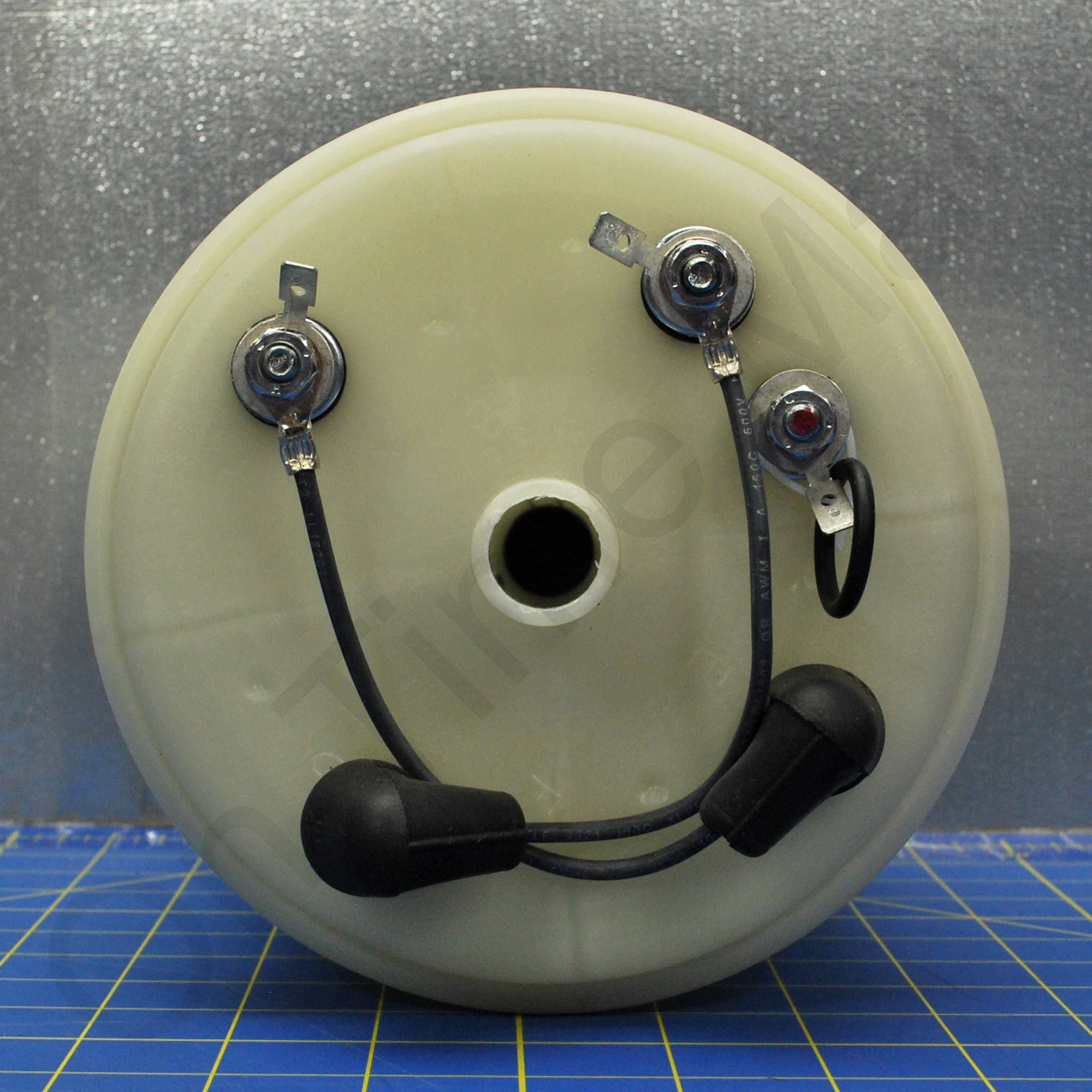

Trion GT-176-1 Steam Cylinder. SPECIAL Replacement steam cylinder assembly for 115 Volt models (For Low Conductive Water Applications). Fits Trion and Herrmidifier brand humidifiers.
Steam Generation
When the electrodes come in contact with the water, the current flows between the electrodes, producing heat. As the water level rises, more areas of the electrode are submerged. This results in more current being drawn in. Once the water has begun boiling, steam will then be produced. (On first startup conductivity level of the water is low, it could take 30-60 minutes for water to heat up enough to produce steam).
When the steam output reaches the desired level, the fill valve will close. As water is evaporated, current and water levels drop. When the current drops below a certain percentage of the desired level, the fill valve opens to raise the water level and the current to maintain the requested steam output level.
If the actual output is larger than the desired steam output, the fill valve remains closed until the requested output level is gained through a slow lowering of the water level due to evaporation.
Maintenance
The cylinder is typically changed once a year or 500-2000 hours of operation, depending on the quality of the fill water supply. There is no need to take it apart and clean it once the unit service light comes on just replace the old cylinder with a new OEM Trion steam cylinder.
Specifications
Manufacturer | Trion |
---|---|
Product Type | Replacement Part |
Product Length | 10.750 |
Product Width | 6.550 |
Product Height | 6.550 |
Product Weight | 2.170 |
Dimension Length | 13.200000 |
Dimension Width | 9.400000 |
Dimension Height | 9.100000 |
