Trion 272823-001 Contact Board
Overview

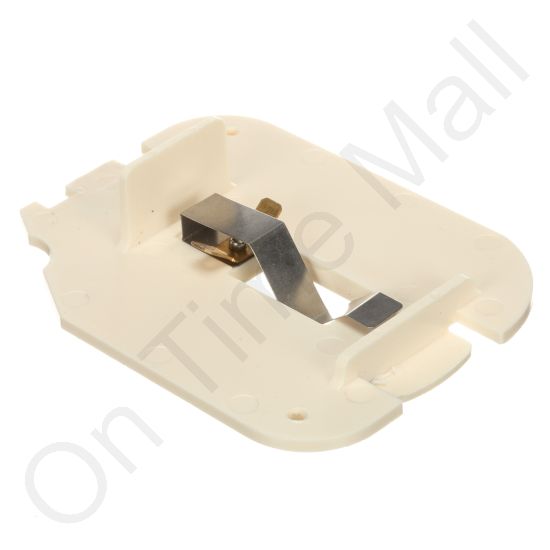

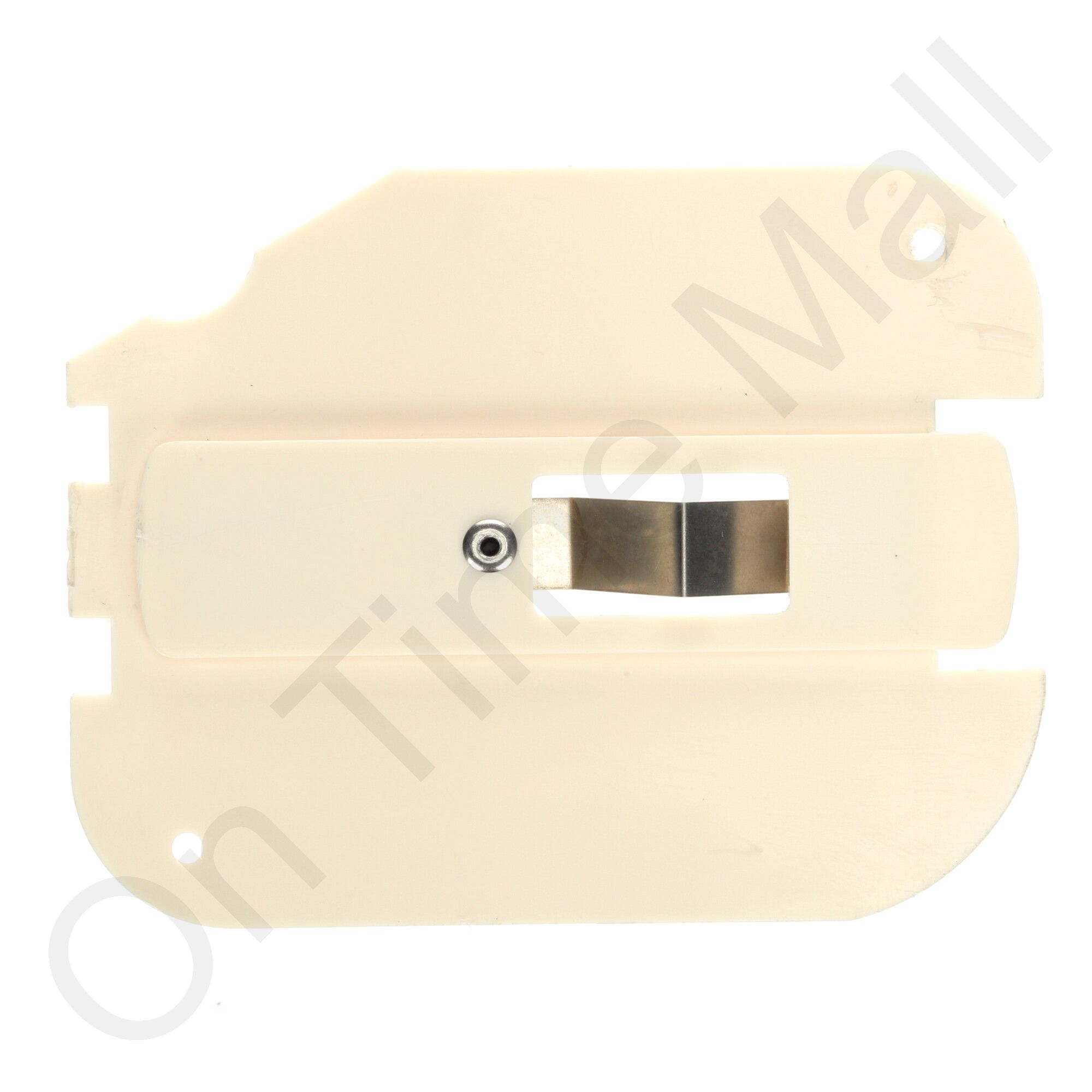

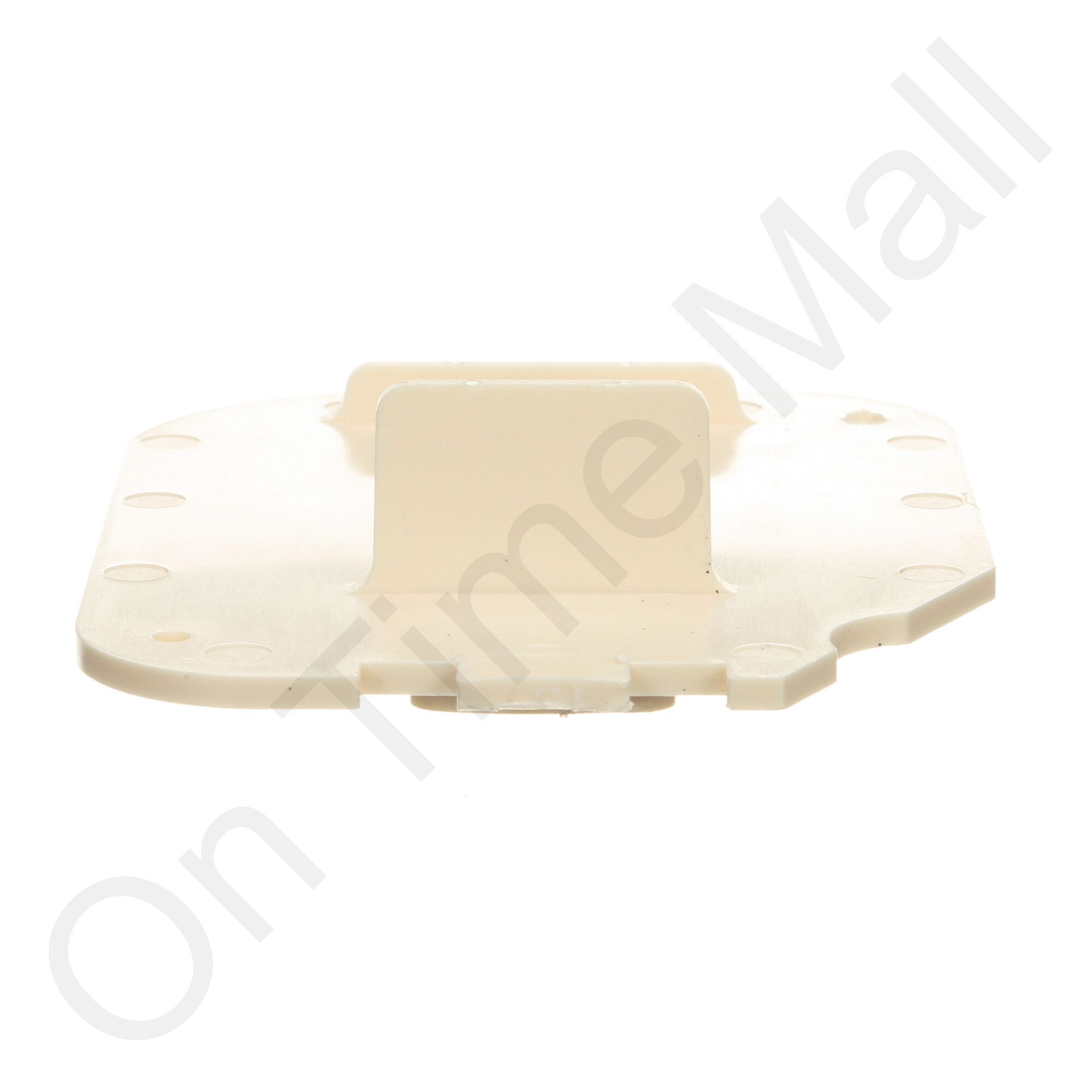

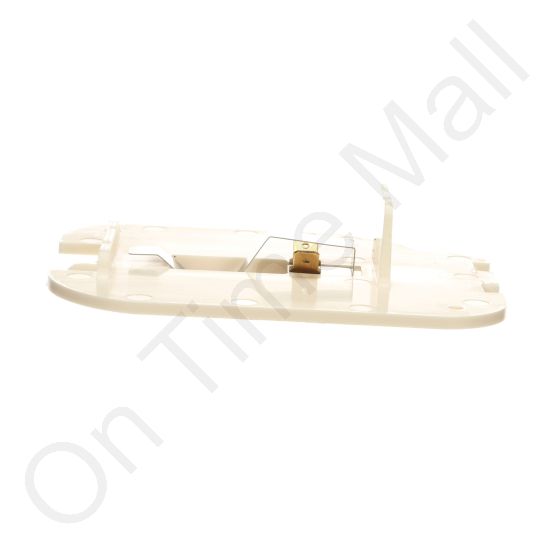

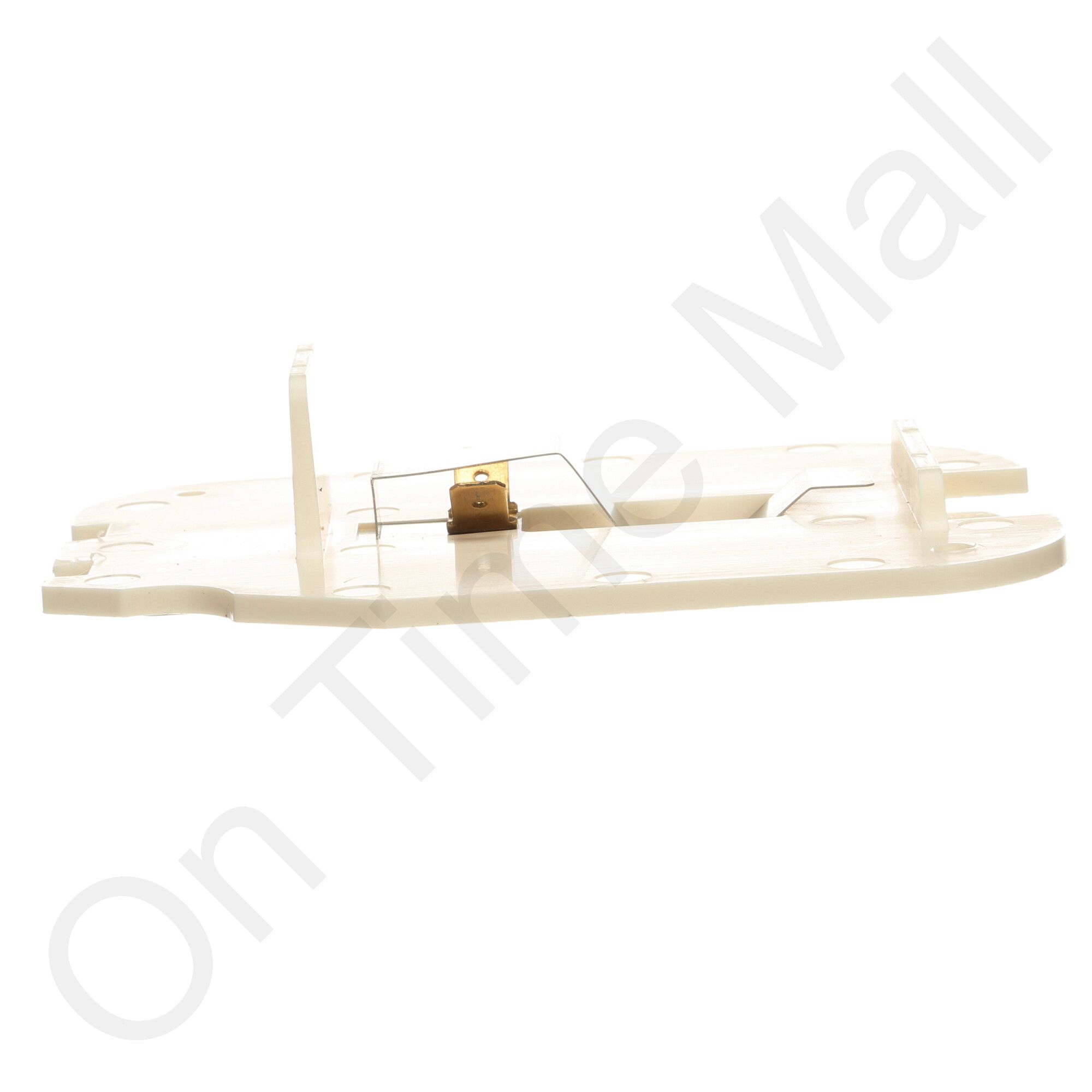

Replacement contact board assembly for electronic air cleaner. Each air cleaner contains 2 of these but they are sold individually. This item looks like a thin piece of circuit board with copper contacts attached to it. When installed, it is mounted on the bottom of the power supply box and electric wires are attached to the top of it. The bottom of this board has copper contacts on it and protrudes slightly into the path of the electronic collector cells. Over the course of time, the contacts located on the bottom of this contact board assembly tend to get holes in them due to arcing of the high voltage power. This is a good indication that the contact board assembly needs replaced.
Specifications
| Manufacturer | Trion |
|---|---|
| Quantity Included | 1 |
| Product Length | 4.500 |
| Product Width | 3.500 |
| Product Height | 1.000 |
| Product Weight | 0.075 |
| Material | Plastic |
| Dimension Length | 6.000000 |
| Dimension Width | 4.000000 |
| Dimension Height | 2.000000 |
Compatibility
- Trion FM1000E Air Cleaner 2 Needed
- Trion FM1000M Air Cleaner 2 Needed
- Trion HE 1400 Air Cleaner 2 Needed
- Trion HE 2000 Air Cleaner 2 Needed
- Trion HE Plus 1400 Air Cleaner 2 Needed
- Trion HE Plus 2000 Air Cleaner 2 Needed
- Trion IAQ 1400 Air Cleaner 2 Needed
- Trion IAQ 2000 Air Cleaner 2 Needed
- Trion Max 4 1400 Air Cleaner 2 Needed
- Trion Max 4 2000 Air Cleaner 2 Needed
- Trion Max 5 1400 Air Cleaner 2 Needed
- Trion Max 5 2000 Air Cleaner 2 Needed
- Trion SE 1400 Air Cleaner 2 Needed
- Trion SE400E Air Cleaner 1 Needed
- Trion SE800E Air Cleaner 2 Needed
- Trion TTM Max 5 Air Cleaner 2 Needed
- Trion Trim TX Air Cleaner 2 Needed
